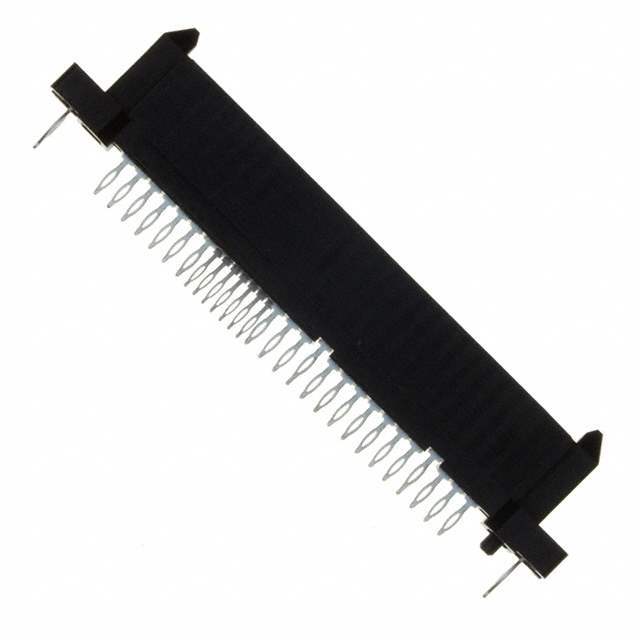

10031077-001LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10031077-001LF

Part No 10031077-001LF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SAS RCPT 29POS PRESSFIT PCB
Datasheet
10031077-001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310671-10031077-001LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Pluggable Connectors > Pluggable Connector Assemblies
Packaging Tray
Part Status Last Time Buy
Connector Type SAS
Number of Positions 29
Mounting Type Through Hole
Termination Press-Fit
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ultra Librarian 3D Model Ultra Librarian 10031077-001LF CAD Model

Description

FEATURES & BENEFITS

• For high-speed serial storage interfaces of up to 12 Gb/s

• Typically used for storage backplane or HDD carrier applications

• Options for through-hole solder, press fit, surface mount (SMT), or hybrid (combination of SMT and TM leads) termination allow engineers to select the termination technique best suited to their design

• Wide-base housing options provide additional stability
