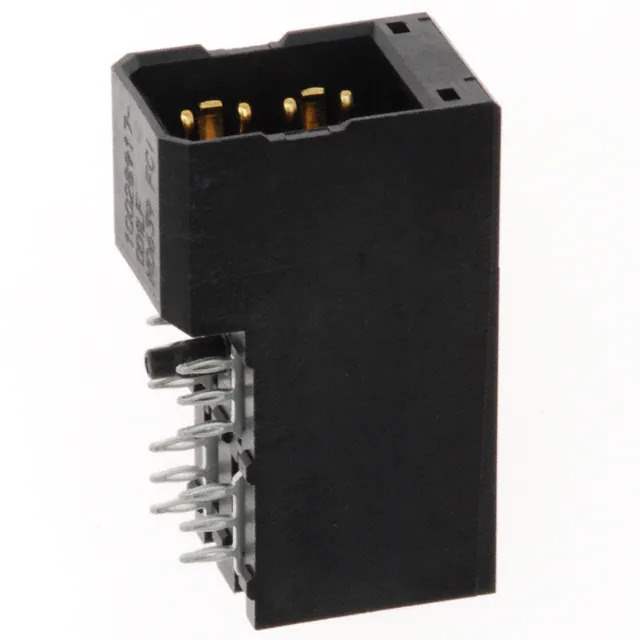

10028917-001LF Real Image
Same model may have multiple batches, images only for reference.

10028917-001LF

Part No 10028917-001LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HEADER BLADE PWR 4P EDGE MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol
Series Airmax®
Package Bulk
Product Status Active
Connector Usage Daughtercard
Connector Type Header, Male Blades
Connector Style Blade Power
Number of Positions 4
Number of Positions Loaded All
Number of Rows 2
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 4 Power
Features Board Guide
Contact Finish Gold or Gold, GXT™
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Base Product Number 10028917
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853550-10028917-001LF
Ultra Librarian 3D Model Ultra Librarian 10028917-001LF CAD Model

Description

The 853550-10028917-001LF is a specialized backplane connector from Amphenol.

  • Series: Airmax®
  • Function: Daughtercard Connectivity
  • Positions: 4
  • Connector Style: Blade Power
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Packaging: Bulk
  • Mounting: Board Edge, Through-Hole, Right-Angle
  • Product Status: Active
