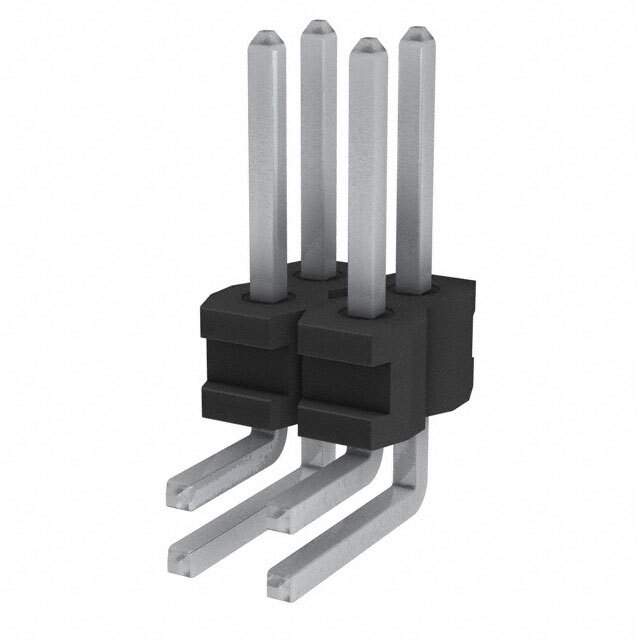

10007607-401-04LF Real Image
Same model may have multiple batches, images only for reference.

10007607-401-04LF

Part No 10007607-401-04LF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN HEADER R/A 4POS 2.54MM / Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series BERGSTIK®
Package Bag
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 130°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 10007607
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000
Win Source Part Number 1039543-10007607-401-04LF
Ultra Librarian 3D Model Ultra Librarian 10007607-401-04LF CAD Model

Description

The BERGSTIK® header connector is a male pin type connector with 4 positions loaded in a 2-row configuration.

  • Fastening Type: push-pull
  • Termination: solder termination
  • Contact Material: phosphor bronze
  • Voltage Rating: - volts
  • Shrouded: unshrouded
  • Row Spacing: 0.100" (2.54mm)
  • Contact Shape: square
  • Operating Temperature Range: -65°C to 130°C
  • Applications: board to board applications
  • Standard Package: 1,000
  • Insulation Material: thermoplastic
  • Flammability Rating: UL94 V-0
