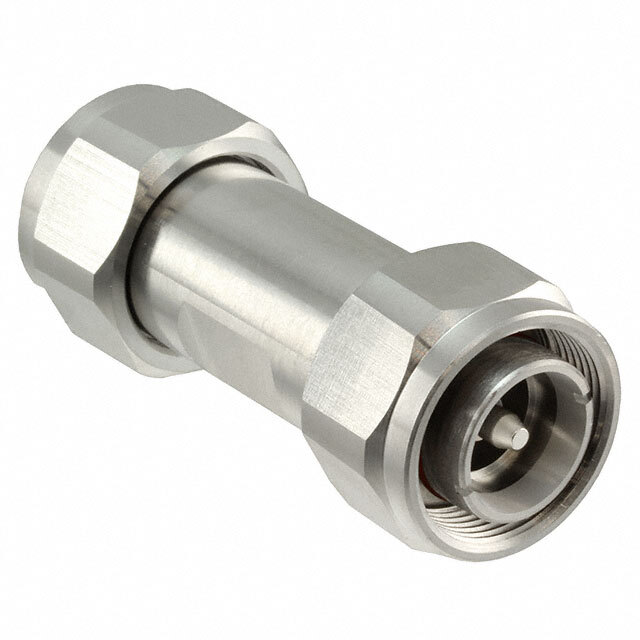

AD-4310P4310P-1 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

AD-4310P4310P-1

Part No AD-4310P4310P-1
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT PLUG-PLUG 4.3/10 / Conn 4.3/10 Adapter 0Hz to 6GHz 50Ohm ST PL/PL Silver
Datasheet
AD-4310P4310P-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series 4.3/10 to 4.3/10
Center Gender Male to Male
Convert From (Adapter End) 4.3/10 Plug, Male Pin
Convert To (Adapter End) 4.3/10 Plug, Male Pin
Impedance 50 Ohm
Style Straight
Mounting Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 6GHz
Center Contact Plating Silver
Features Low PIM
Body Material Brass
Body Finish White Bronze
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Operating Temperature Range -65°C ~ 165°C
Win Source Part Number 793157-AD-4310P4310P-1
Popularity Medium
Supply and Demand Status Limited
Family Name AD-431P
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AD-4310P4310P-1 CAD Model

Description

The Amphenol RF Division 793157-AD-4310P4310P-1 is a plug to plug adapter with a conversion type of same series.

  • Frequency Range: Up to 6GHz
  • Impedance: 50 Ohm
  • Adapter Series: 4.3/10 to 4.3/10
  • Conversion: 4.3/10 plug male pin to 4.3/10 plug male pin
  • Features: Low PIM
  • Operating Temperature Range: -65°C to 165°C
  • Body Material: Brass
  • Body Finish: White bronze
  • Center Contact Material: Brass
  • Center Contact Plating: Silver
  • Center Gender: Male to Male
  • Family Name: AD-431P
  • Popularity: Medium
