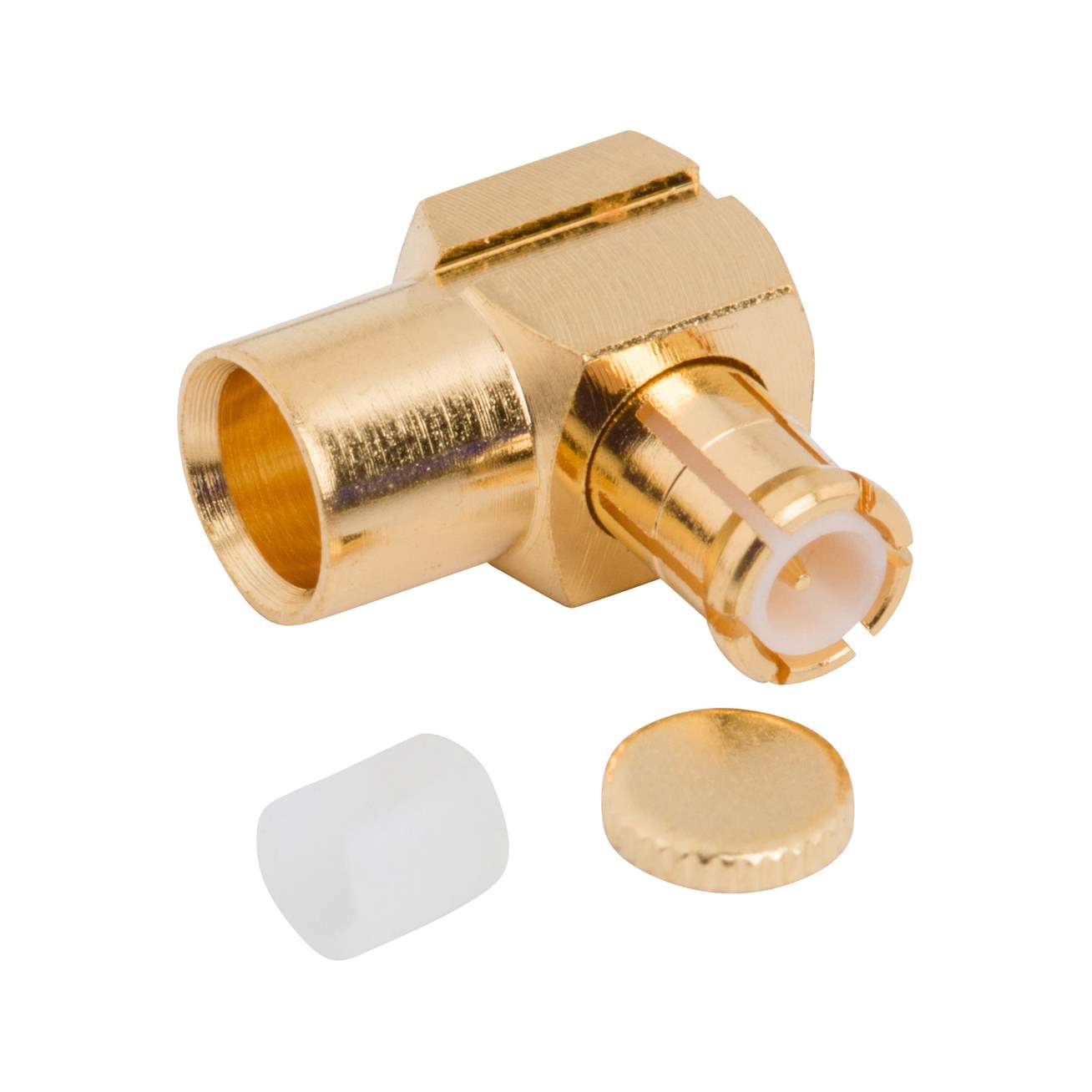

Same model may have multiple batches, images only for reference.

919-103P-51AX

Name: 919-103P-51AX
Brand: Amphenol-RF Division
SKU: 436462
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	919-103P-51AX
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF)
Description	CONN MCX PLUG R/A 50 OHM SOLDER
Datasheet	919-103P-51AX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol RF Division
Packaging	Bulk
Status	Active
Connector Style	MCX
Connector Type	Plug, Male Pin
Contact Termination	Solder
Shield Termination	Solder
Impedance	50 Ohm
Mounting	Free Hanging (In-Line), Right Angle
Cable Group	RG-402 (.141" Semi Rigid)
Fastening Type	Snap-On
Maximum Input Frequency	6GHz
Housing Color	Gold
Includes	3 pcs - 1 Connector, 1 End Cap, 1 Insulator
Body Material	Beryllium Copper
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-40°C to 155°C
Center Contact Material	Brass
Mating Cycles	500
Insertion Loss	0.1dB
Win Source Part Number	1021792-919-103P-51AX
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 919-103P-51AX CAD Model

Alternative Products

Description

The Amphenol RF Division 1021792-919-103P-51AX is an active MCX plug, male pin connector with a snap-on fastening type.

Impedance: 50 Ohm
Frequency Range: Up to 6GHz
Contact Material: Beryllium Copper
Contact Finish: Gold
Center Contact Material: Brass
Center Contact Plating: Gold
Body Material: PTFE
Housing Color: Gold
Pieces: 3 (1 connector, 1 end cap, and 1 insulator)
Cable Type: RG-402 (.141" Semi Rigid)
