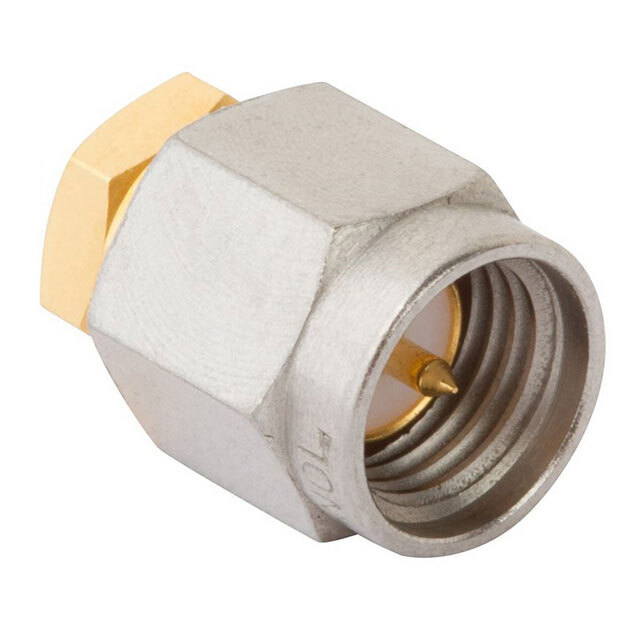

Same model may have multiple batches, images only for reference.

901-9808-T

Name: 901-9808-T
Brand: Amphenol-RF Division
SKU: 793155
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	901-9808-T
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF)
Description	CONN SMA PLUG STR 50 OHM SOLDER / Conn SMA PIN 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold Over Nickel Bag
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol RF Division
Packaging	Bulk
Connector Style	SMA
Connector Type	Plug, Male Pin
Contact Termination	Solder
Shield Termination	Solder
Impedance	50 Ohm
Mounting	Free Hanging (In-Line)
Cable Group	RG-402 (.141" Semi Rigid)
Fastening Type	Threaded
Frequency - Max	18GHz
Housing Color	Gold, Silver
Ingress Protection	Weatherproof
Body Material	Stainless Steel
Body Finish	Gold; Passivated
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Operating Temperature Range	-65°C ~ 165°C
Center Contact Material	Beryllium Copper
Mating Cycles	500
Win Source Part Number	793155-901-9808-T
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	901-9808
Introduction Date	November 03, 2015
ECCN	EAR99
Country of Origin	China, Germany, Mexico, United States of America
Estimated EOL Date	2032
Ultra Librarian 3D Model	Ultra Librarian 901-9808-T CAD Model

Alternative Products

Description

This Amphenol RF Division SMA plug connector, part number 793155-901-9808-T, features a male pin and threaded fastening type.

Impedance: 50 Ohm
Maximum Frequency: 18 GHz
Material: Stainless steel
Housing Color: Gold and silver
Operating Temperature: -65°C to 165°C
EOL Date: 2032
Supply and Demand Status: Limited
Cable Group: RG-402 (.141” Semi Rigid)
