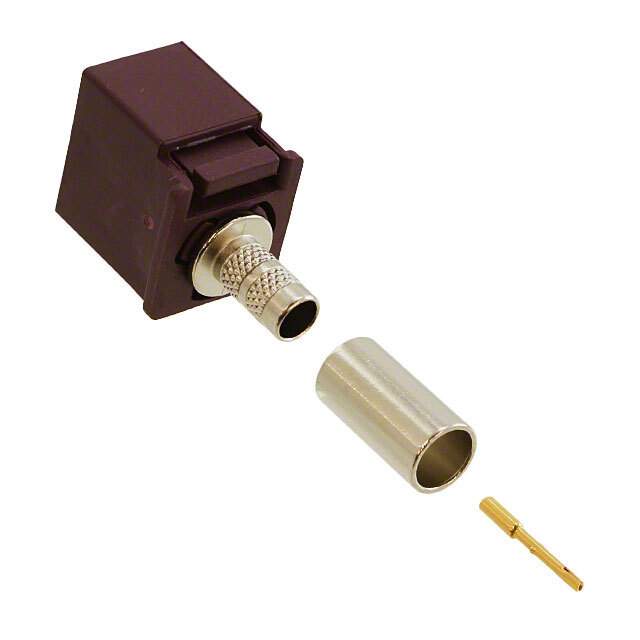

Same model may have multiple batches, images only for reference.

2FA1-NDSJ-C04-0

Name: 2FA1-NDSJ-C04-0
Brand: Amphenol-RF Division
SKU: 793129
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	2FA1-NDSJ-C04-0
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF)
Description	CONN FAKRA JACK STR 50 OHM CRIMP / Conn SMB RCP 0Hz to 6GHz 50Ohm ST Cable Mount Gold Automotive
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol RF Division
Packaging	Tray
Connector Style	SMB, Fakra
Connector Type	Jack, Female Socket
Contact Termination	Crimp
Shield Termination	Crimp
Impedance	50 Ohm
Mounting	Free Hanging (In-Line)
Cable Group	RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type	Latch Lock
Frequency - Max	6GHz
Features	Code D
Housing Color	Violet, Claret
Includes	3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material	Zinc Die Cast
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Operating Temperature Range	-40°C ~ 100°C
Center Contact Material	Phosphor Bronze
Mating Cycles	100
Insertion Loss	0.3dB
Win Source Part Number	793129-2FA1-NDSJ-C04-0
Popularity	Medium
Supply and Demand Status	Limited
Family Name	2FA1
Introduction Date	September 26, 2007
ECCN	EAR99
Country of Origin	China, Germany, Mexico, United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 2FA1-NDSJ-C04-0 CAD Model

Alternative Products

Description

This Amphenol RF Division Fakra SMB connector, part number 793129-2FA1-NDSJ-C04-0 from Amphenol RF Division.

Type: Female Socket
Fastening Type: Latch Lock
Impedance: 50 Ohm
Maximum Frequency: 6 GHz
Body Material: Zinc Die-Cast
Body Finish: Nickel
Operating Temperature: -40°C to 100°C
Insertion Loss: 0.3dB
Pieces: 3 (1 connector, 1 contact, 1 ferrule)
Cable Groups: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Supply and Demand Status: Limited
Estimated EOL Date: 2027
