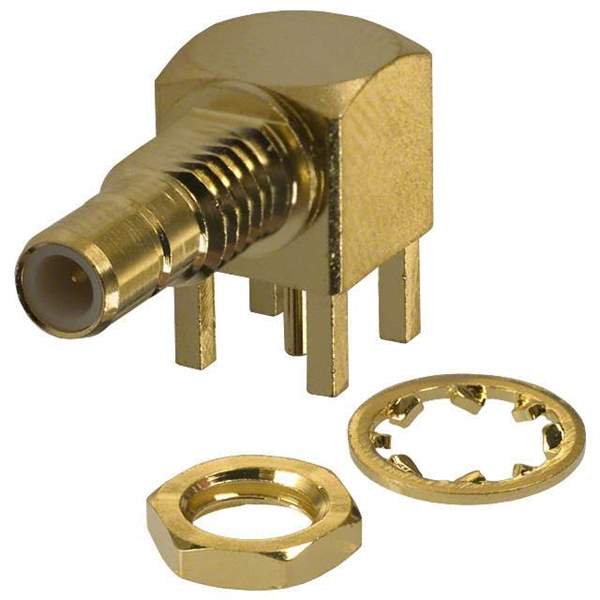

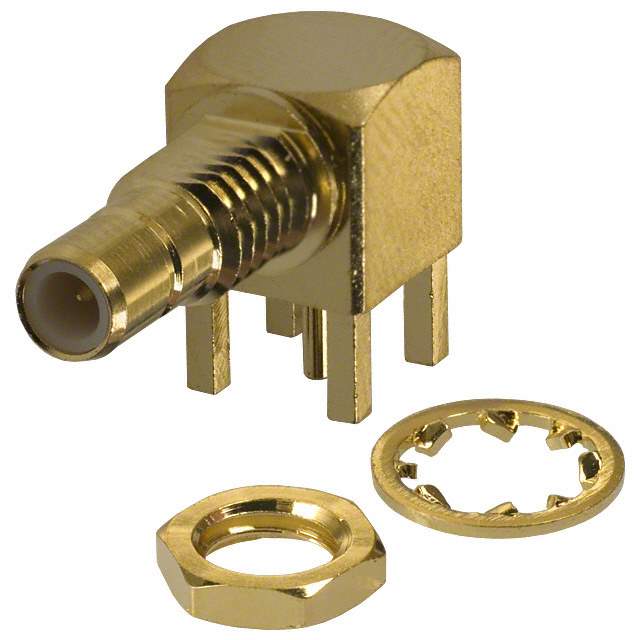

142184

Part No 142184
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMB JACK R/A 50 OHM PCB / SMB Connector Jack, Male Pin 50Ohm Panel Mount, Through Hole, Right Angle Solder
Datasheet
142184 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Series -
Package Bag
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Cable Group -
Fastening Type Snap-On
Frequency - Max 4 GHz
Number of Ports 1
Features -
Housing Color Gold
Ingress Protection -
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Mating Cycles 500
Insertion Loss 0.6dB
Base Product Number 1421
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1380525-142184
Ultra Librarian 3D Model Ultra Librarian 142184 CAD Model

Description

The 1380525-142184 is a male pin jack coaxial connector assembly from Amphenol-RF Division.

  • Frequency Range: Up to 4 GHz
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Voltage Rating: 335 V
  • Impedance: 50 Ohm
  • Material: Brass
  • Housing Color: Gold
  • Mounting: Bulkhead
  • Front Side Nut: Yes
  • Insertion Loss: 0.6dB
  • Mating Cycle: 500
  • Package Includes: 1 Connector, 1 Lockwasher, and 1 Nut
  • Mounting Options: Panel, Through-Hole, Right Angle
  • Operating Temperature: -65°C to 165°C
  • REACH Compliant: Yes
  • ECCN: EAR99
