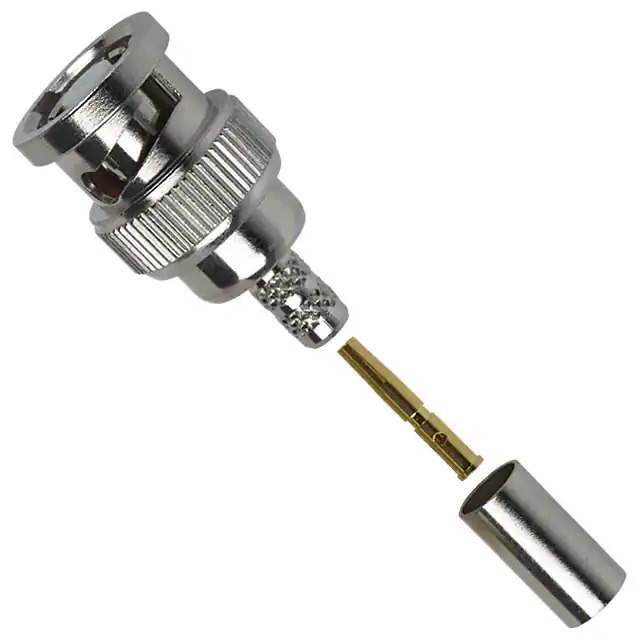

112116RP Real Image
Same model may have multiple batches, images only for reference.

112116RP

Part No 112116RP
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN RP-BNC PLUG STR 50OHM CRIMP / RP-BNC Connector Plug, Female Socket 50Ohm Free Hanging (In-Line) Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bulk
Product Status Active
Connector Style RP-BNC
Connector Type Plug, Female Socket
Contact Termination Crimp
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Phosphor Bronze
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 112116
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 859387-112116RP
Ultra Librarian 3D Model Ultra Librarian 112116RP CAD Model

Description

The 859387-112116RP is a coaxial connector assembly designed for RF applications. Manufactured by Unknown Manufacturer.

  • Connector Type: Plug, Female Socket
  • Fastening Type: Bayonet Lock
  • Connector Style: RP-BNC
  • Voltage Rating: 500V
  • Maximum Frequency: 4 GHz
  • Body Material: Brass
  • Impedance: 50Ohm
  • Insertion Loss: 0.2dB
  • Cable Compatibility: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 cables
  • Body Finish: Nickel
  • Center Contact Plating: Gold
  • Mounting: Free-Hanging (In-Line)
  • Operating Temperature Range: -65°C to 165°C
  • Application: RF Applications
