Part No 031-70507
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)

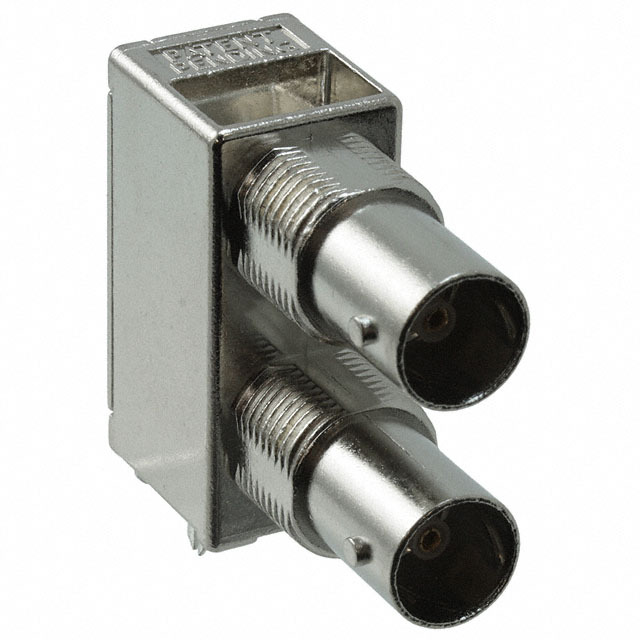

Description CONN BNC JACK R/A 75 OHM PCB / Conn Dual Port BNC 0Hz to 1GHz 75Ohm Solder RA Thru-Hole F/F Gold Over Nickel Tray
Datasheet
031-70507 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Tray
Connector Style BNC
Connector Type Jack, Female Sockets - Dual
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 1GHz
Features Board Lock
Housing Color Silver
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polypropylene (PP)
Operating Temperature Range -55°C ~ 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Insertion Loss 0.2dB
Win Source Part Number 793140-031-70507
Popularity Medium
Supply and Demand Status Limited
Family Name 031-70507
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 031-70507 CAD Model

Description

The Amphenol RF Division 793140-031-70507 BNC Jack, Female Sockets - Dual connector is a high-quality interconnect component suitable for use in a wide range of applications.

  • Fastening System: Bayonet lock
  • Contact Termination: Solder
  • Impedance: 75 Ohm
  • Body Material: Zinc die-cast with a nickel finish
  • Dielectric Material: Polypropylene (PP)
  • Mounting Configurations: Panel mount, through-hole, and right-angle
  • Maximum Input Frequency: 1GHz
