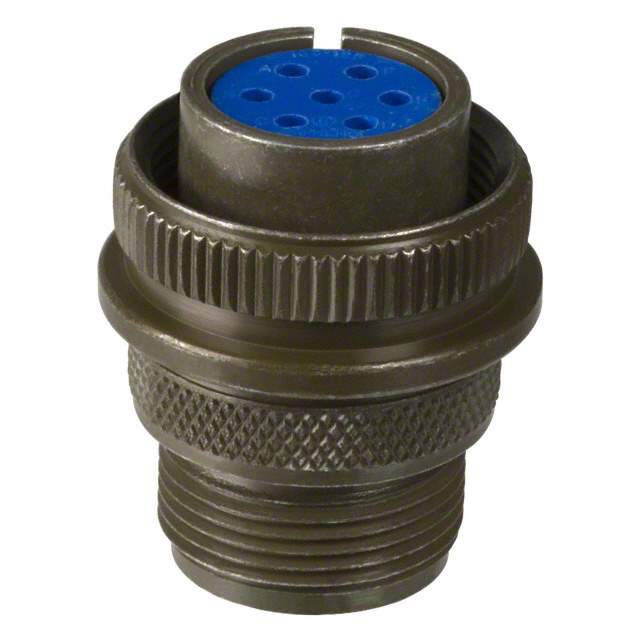

97-3106A-16S-1S(946) Real Image
Same model may have multiple batches, images only for reference.

97-3106A-16S-1S(946)

Part No 97-3106A-16S-1S(946)
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE 7P SOLDER CUP / 7 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
97-3106A-16S-1S(946) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Amphenol Industrial Operations
Packaging Bulk
Connector Type Plug, Female Sockets
Number of Positions 7
Shell Size - Insert 16S-1
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Black Zinc Alloy
Contact Finish - Mating Silver
Color Black
Features Backshell, Coupling Nut
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum Alloy, Black Zinc Alloy
Contact Material Copper Alloy
Insert Material Diallyl Phthalate (DAP)
Applications Automotive, Industrial
Base Product Number 97-3106A16
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 93-830388-01S,C93-830388-01S,9383038801S,973106A16S1S946,973106A16S1S(946)
Standard Package 1
Win Source Part Number 1334498-97-3106A-16S-1S(946)
Ultra Librarian 3D Model Ultra Librarian 97-3106A-16S-1S(946) CAD Model

Description

The Amphenol Industrial Operations 1334498-97-3106A-16S-1S(946) is a circular connector assembly that has 7 positions and is made up of copper alloy material with silver contact finish.

  • Connector Type: Plug
  • Contact Type: Female Sockets
  • Termination: Solder Cup
  • Environment Resistance: Yes
  • Temperature Range: -55°C to 125°C
  • Body Material: Aluminum Alloy
  • Shell Finish: Black Zinc Alloy
  • Applications: Automotive and Industrial
