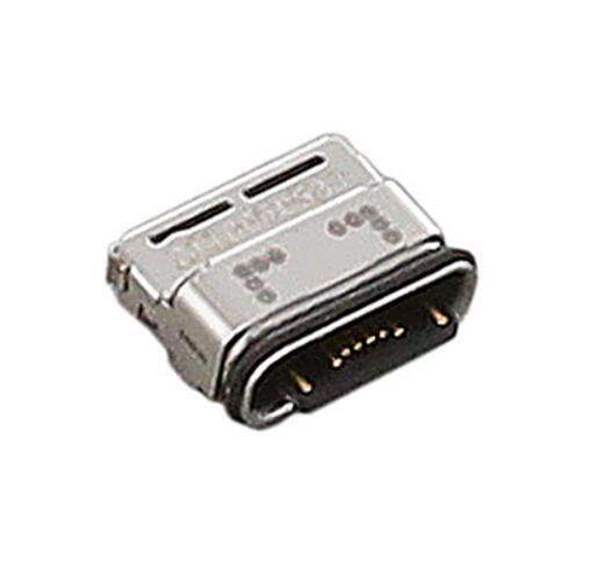

124019772112A Amphenol ICC (Commercial Products)
Same model may have multiple batches, images only for reference.

124019772112A

Part No 124019772112A
Manufacturer Amphenol Industrial Operations
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB2.0 TYP C 24P SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202466-124019772112A
Win Source Part Number Cross
Manufacturer Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24 (16+8 Dummy)
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Ultra Librarian 3D Model Ultra Librarian 124019772112A CAD Model

Description

The USB-C (USB TYPE-C) connector assembly from the Connectors, Interconnects category is a versatile and widely used connector type.

  • Connections: USB, DVI, HDMI
  • Contacts: 24 (16 active, 8 dummy)
  • Specification: USB 2.0
  • Mounting: Surface Mount, Right-Angle, and Through-Hole
  • Packaging: Tape & Reel (TR) Cut Tape (CT)
  • Status: Active
