Same model may have multiple batches, images only for reference.

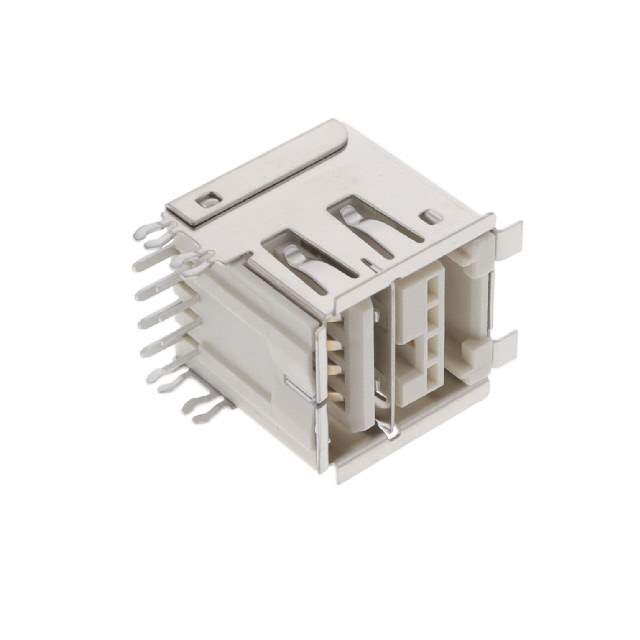

55917-700LF Real Image
Same model may have multiple batches, images only for reference.

55917-700LF

Part No 55917-700LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description USB PLUS POWER RECEPTACLE LF
Datasheet
55917-700LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Tube/Rail
Status Active
Connector Type USB - A and Power, Combo
Number of Contacts 8
Gender Receptacle
Specifications USB 2.0
Mounting Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Temperature Range - Operating -55°C to 85°C
Number of Ports 1
Current Rating 3A
Voltage Rating 5V
Mating Cycles 1500
Contact Finish Gold, GXT
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Natural
Win Source Part Number 1010076-55917-700LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 55917-700LF CAD Model

Description

The Amphenol FCI 1010076-55917-700LF is a USB-A and power combo connector with 8 contacts and a solder termination style.

  • Contacts: 8
  • Termination: Solder
  • Voltage: 5V
  • Current Rating: 3A
  • Mounting: Through-Hole, Right-Angle
  • Mounting Feature: Horizontal
  • Operating Temperature: -55°C to 85°C
  • Material Flammability Rating: UL94 V-0
  • Supply and Demand Status: Balanced
  • Packaging: Tube/Rail
