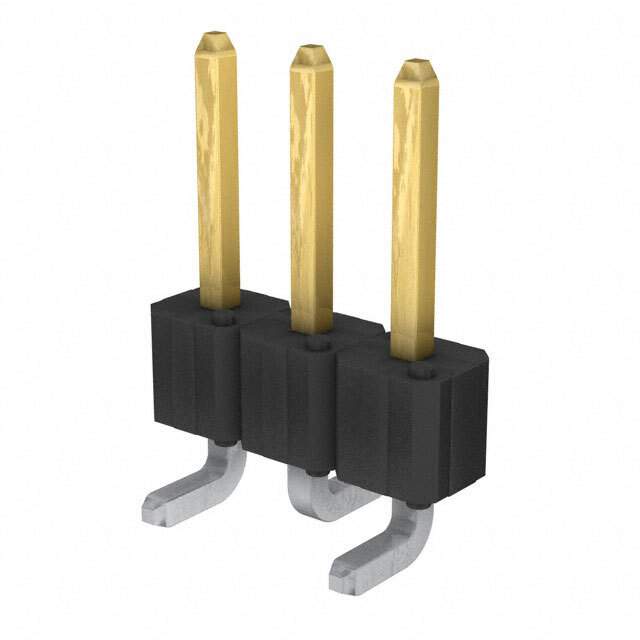

Same model may have multiple batches, images only for reference.

54201-G0803ALF

Name: 54201-G0803ALF
Brand: Amphenol FCI
SKU: 763996
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	54201-G0803ALF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	CONN HDR SNGL 0.100" SMT
Datasheet	54201-G0803ALF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Series	BERGSTIK
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Features	Pick and Place
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100μin (2.54μm)
Win Source Part Number	763996-54201-G0803ALF
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 54201-G0803ALF CAD Model

Alternative Products

Description

{"ProductId":702374,"FormattedDescription":"

The Amphenol FCI 763996-54201-G0803ALF BERGSTIK Header Connector is a male pin connector with a push-pull fastening system.

Rows: 1
Positions Loaded: 3 (All Male Pins)
Contact Material: Phosphor Bronze
Contact Finish: Gold or Gold GXT
Contact Finish Thickness: 30μin (0.76μm)
Pitch: 0.100\" (2.54mm)
Mounting: Surface Mount
Insulation Color: Black
Shrouding: Unshrouded
Insulation Height: 0.100\" (2.54mm)
Applications: Board-to-Board
Flammability Rating: UL94 V-0
Package: Reel
Features: Pick and Place
Supply and Demand Status: Limited
