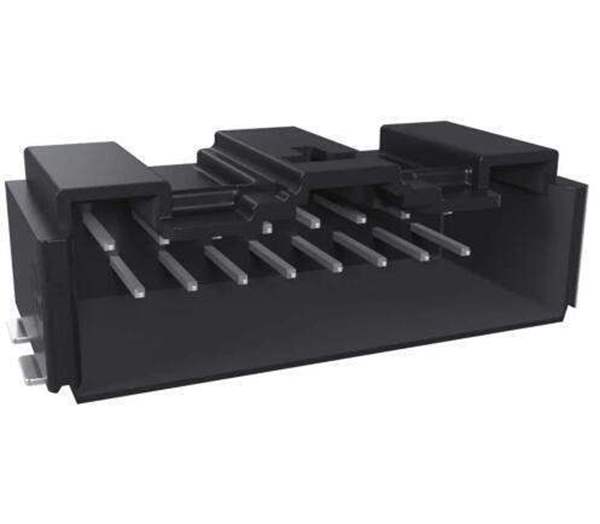

10142344-316KLF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10142344-316KLF

Part No 10142344-316KLF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description HORIZONTAL HEADER
Datasheet
10142344-316KLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Tape & Reel (TR)
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.096" (2.43mm)
Ultra Librarian 3D Model Ultra Librarian 10142344-316KLF CAD Model

Description

MicroSpace™ Crimp-to-Wire connector platform’s unique design enables LV214 Severity-2 and performs at 1.27mm, 1.5mm, and 1.8mm pitch. MicroSpace™ will be available in single and double row versions, with top and side latch configurations.

● LV214 Severity-2 Compatible

● Keying to prevent visual mismatching

● Terminal Positioning Assurance (TPA)

● Primary and secondary contact retention

● Connector Positioning Assurance (CPA)
