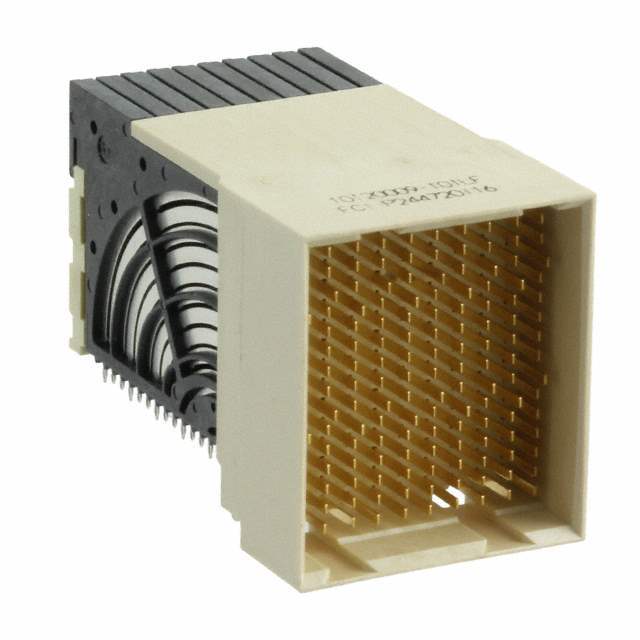

10120009-101LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10120009-101LF

Part No 10120009-101LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description CONN HDR HI SPEED 150POS EDGE MT
Datasheet
10120009-101LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324385-10120009-101LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Backplane Connectors > Specialized
Packaging Tube
Part Status Active
Connector Usage Daughtercard
Connector Type Header, Male Pins
Number of Positions 150
Number of Positions Loaded All
Pitch 0.055" (1.40mm)
Number of Columns 10
Ultra Librarian 3D Model Ultra Librarian 10120009-101LF CAD Model

Description

FEATURES

• Provides a migration path for up to 25Gb/s per differential pair

• Shieldless design with closely coupled pairs

• Backward mateable to existing AirMax VS® and AirMax VS2® designs

• 3, 4 and 5 pair backplane and coplanar versions are available

• Hard metric design practice
