Same model may have multiple batches, images only for reference.

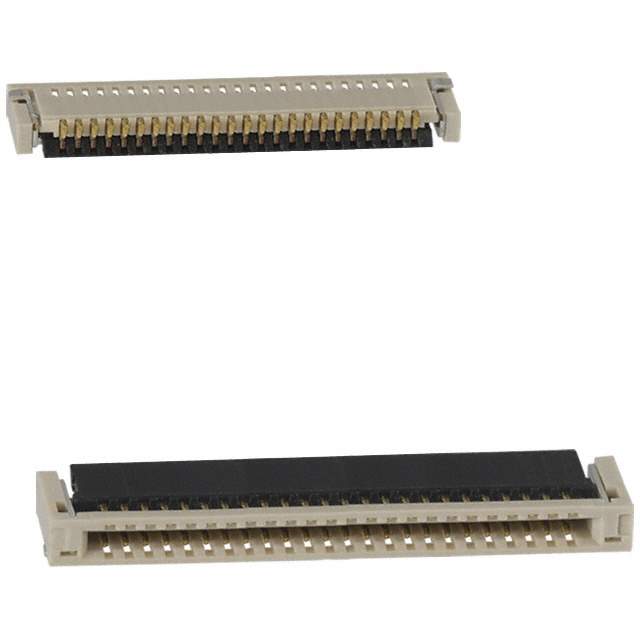

10051922-2410ELF Real Image
Same model may have multiple batches, images only for reference.

10051922-2410ELF

Part No 10051922-2410ELF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 24POS 0.50MM R/A
Datasheet
10051922-2410ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.051" (1.30mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA9T), Nylon 9T, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 2μin (0.05μm)
Housing Color Natural
Actuator Color Black
Win Source Part Number 1000747-10051922-2410ELF
Popularity Medium
Supply and Demand Status Balance
Application Field Used in RF Communications, Industrial
Ultra Librarian 3D Model Ultra Librarian 10051922-2410ELF CAD Model

Description

The 10051922-2410ELF is an electronic component manufactured by Amphenol FCI.

  • Supply and Demand Status: Balance
  • Type: Connector
  • Number of Positions: 24
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention, zero insertion force (ZIF), termination by solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.051" (1.30mm)
  • Suitable For: RF communications and industrial applications
