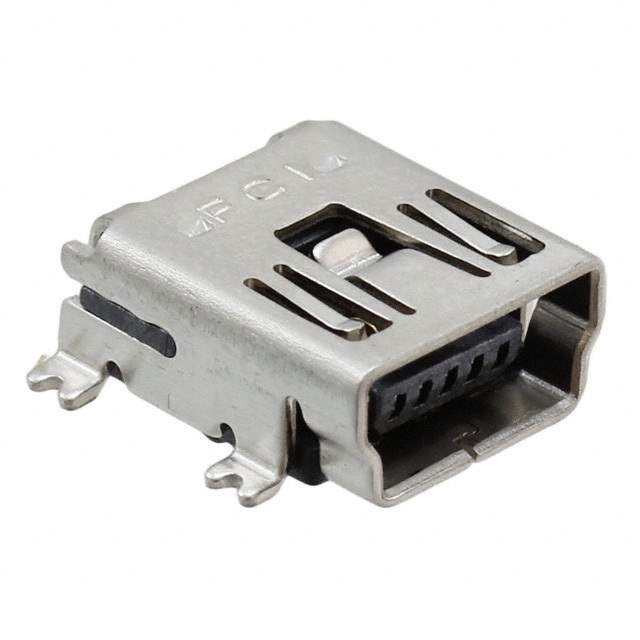

10033526-N3212LF Real Image
Same model may have multiple batches, images only for reference.

10033526-N3212LF

Part No 10033526-N3212LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description MINI USB B-TYPE SMT RECEPTACLE | CONN RCPT MINI USB B 5POS SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol ICC (FCI)
Packaging Reel
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Mounting Style SMT, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30V
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120903-10033526-N3212LF
Manufacturer Homepage www.fciconnect.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10033526-N3212LF CAD Model

Description

The 1120903-10033526-N3212LF is a USB mini-B connector from Amphenol ICC (FCI) that is designed for use in a wide range of applications, including data transfer and charging of mobile devices.

  • Popularity: medium
  • Supply and Demand Status: balanced
  • Connector Type: receptacle
  • Contacts: 5
  • Mounting Feature: horizontal
  • Contact Finish: gold
  • Shielded: yes
  • Insulation Color: black
  • Voltage Rating: 30V
  • Current Rating: 1A per contact
  • Halogen-Free: not compliant
