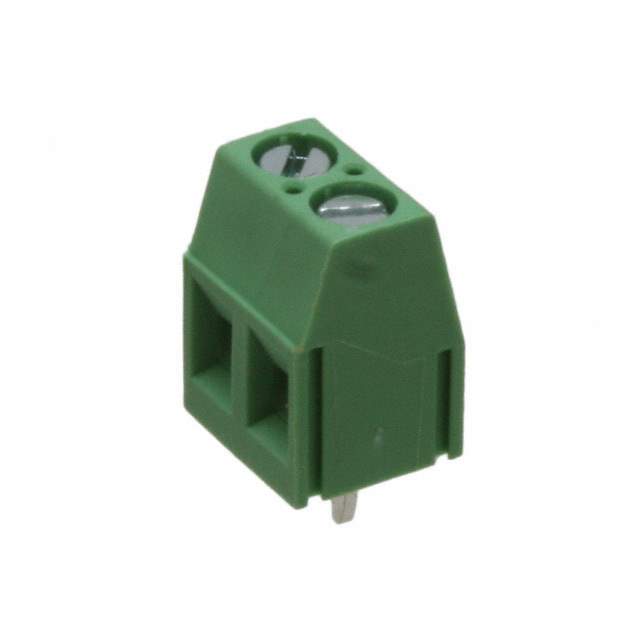

VI0201550000G Real Image
Same model may have multiple batches, images only for reference.

VI0201550000G

Part No VI0201550000G
Manufacturer Amphenol Anytek
Catalog Terminal Blocks
Description TERM BLK 2POS SIDE ENTRY 5MM PCB / 2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Datasheet
VI0201550000G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Amphenol Anytek
Packaging Bulk
Number of Levels 1
Positions Per Level 2
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 16 A
Voltage 300 V
Wire Gauge 12-28 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Temperature Range - Operating -40°C ~ 115°C
Housing Material Thermoplastic
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Screw Material - Plating Steel - Zinc Plated
Torque - Screw 0.4 Nm (3.5 Lb-In)
Screw Thread M3
Base Product Number VI02
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 20020316-G021B01LF,609-3927,20020316G021B01LF
Standard Package 1,320
Win Source Part Number 1332142-VI0201550000G
Ultra Librarian 3D Model Ultra Librarian VI0201550000G CAD Model

Description

The Amphenol Anytek 1332142-VI0201550000G is a wire to board terminal block connector.

  • Pitch: 0.197" (5.00mm)
  • Wire Gauge: 12-28 AWG
  • Voltage Rating: 300V
  • Current Rating: 16A
  • Interlocking: interlocking (side)
  • Wire Termination: screw - rising cage clamp
  • Housing Material: thermoplastic
  • Contact Material: copper alloy with tin plating
  • Clamp Material: copper alloy with nickel plating
  • Screw Material: steel with zinc plating
  • Screw Thread: M3
  • Torque: 0.4 Nm (3.5 Lb-In)
  • Temperature Range: -40°C ~ 115°C
  • ROHS3 Compliant: Yes
  • Mounting: through hole
  • Mating Orientation: horizontal with board
