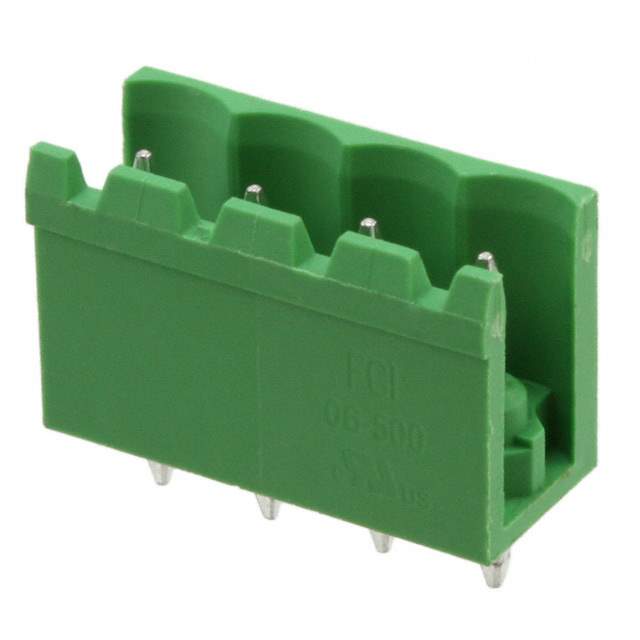

OQ0453500000G Real Image
Same model may have multiple batches, images only for reference.

OQ0453500000G

Part No OQ0453500000G
Manufacturer Amphenol Anytek
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Amphenol Anytek
Packaging Bulk
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - UL 12 A
Voltage - UL 300 V
Color Green
Temperature Range - Operating -40°C ~ 115°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Thermoplastic Resin
Contact Tail Length 0.157" (4.00mm)
Insulation Height 0.472" (12.00mm)
Base Product Number OQ04
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 20020106H041A01LF,OQ04535000J0G-ND,OQ04535000J0G,OQ0453500000GINACTIVE,609-4277,20020106-H041A01LF,OQ0453500000G-ND,OQ0453500000Y
Standard Package 2,100
Win Source Part Number 1332118-OQ0453500000G
Ultra Librarian 3D Model Ultra Librarian OQ0453500000G CAD Model

Description

The Amphenol Anytek header is a male pin, shrouded (2 side) connector used for connecting wires.

  • Pitch: 0.200" (5.08mm)
  • Mounting Type: Through-Hole
  • Positions per Level: 4
  • Number of Levels: 1
  • Total Positions: 4
  • Color: Green
  • Housing Material: Thermoplastic Resin
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature Range: -40°C to 115°C
  • Current Rating (UL): 12 A
  • Voltage Rating (UL): 300 V
  • Contact Mating Finish: Tin
  • Termination Style: Solder
  • Packaging: Bulk
  • Standard Package Size: 2,100
