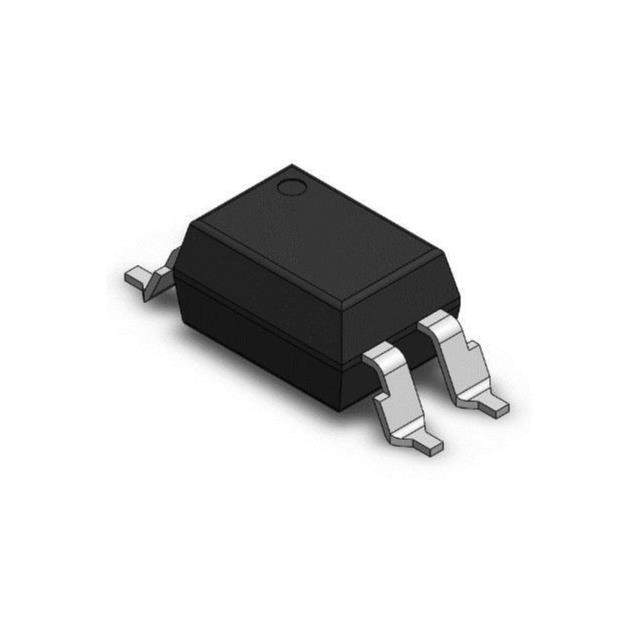

APC-817A1-SL Real Image
Same model may have multiple batches, images only for reference.

APC-817A1-SL

Part No APC-817A1-SL
Manufacturer American Bright Optoelectronics Corporation
Catalog Optoisolators - Transistor, Photovoltaic Output
Description DIP4, DC INPUT, PHOTO TRANSISTOR / Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Datasheet
APC-817A1-SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr American Bright Optoelectronics Corporation
Series APC-817
Package Cut Tape (CT),,Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 80% @ 5mA
Current Transfer Ratio (Max) 160% @ 5mA
Rise / Fall Time (Typ) 3µs, 4µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 35V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.24V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -55°C ~ 110°C
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Base Product Number APC-817
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names 754-APC-817A1-SLCT-ND,2007-APC-817A1-SLTR,754-APC-817A1-SLCTINACTIVE,754-APC-817A1-SLDKR,2007-APC-817A1-SLDKR,754-APC-817A1-SL,754-APC-817A1-SLDKR-ND,754-APC-817A1-SLDKRINACTIVE-ND,2007-APC-817A1-SL-ND,754-APC-817A1-SLDKRINACTIVE,754-APC-817A1-SL-ND,754-APC-817A1-SLCTINACTIVE-ND,2007-APC-817A1-SL,754-APC-817A1-SLCT,2007-APC-817A1-SLCT
Standard Package 1,500
Win Source Part Number 1006963-APC-817A1-SL
Ultra Librarian 3D Model Ultra Librarian APC-817A1-SL CAD Model

Description

The American Bright Optoelectronics Corporation APC-817A1-SL is an optoisolator with a transistor photovoltaic output.

  • Manufacturer: American Bright Optoelectronics Corporation
  • Current Transfer Ratio: 80% @ 5mA
  • Maximum Current Transfer Ratio: 160% @ 5mA
  • Voltage Isolation: 5000Vrms
  • Forward Voltage: 1.24V
  • Package: 4-SMD, Gull Wing
  • Standard Package: 1,500
  • Mounting: surface mounted
  • Operating Temperature: -55°C to 110°C
