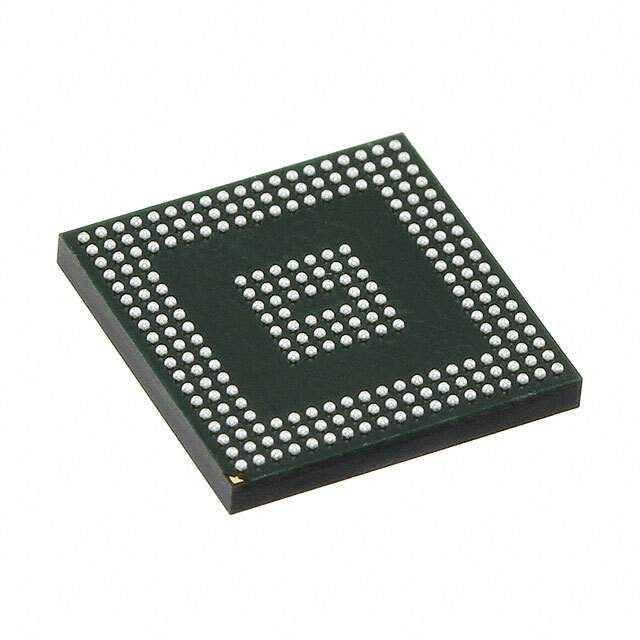

XC7A15T-2CPG236C Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD Xilinx
Series Artix-7
Package Tray
Number of LABs/CLBs 1300
Number of Logic Elements/Cells 16640
Total RAM Bits 921600
Number of I/O 106
Voltage - Supply 0.95V ~ 1.05V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 238-LFBGA, CSPBGA
Supplier Device Package 238-CSBGA (10x10)
Base Product Number XC7A15
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 240
Win Source Part Number 1210455-XC7A15T-2CPG236C
Ultra Librarian 3D Model Ultra Librarian XC7A15T-2CPG236C CAD Model

Description

The XC7A15T-2CPG236C is an Artix-7 series integrated circuit manufactured by AMD Xilinx.

  • Series: Artix-7
  • Package: 238-LFBGA, CSPBGA
  • Supplier Device Package: 238-CSBGA (10x10)
  • I/O: 106
  • LABs/CLBs: 1300
  • Logic Elements/Cells: 16640
  • Total RAM Bits: 921600
  • Voltage Supply: 0.95V to 1.05V
  • Operating Temperature: 0°C to 85°C (TJ)
  • Package: Tray
  • Standard Package: 240
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
