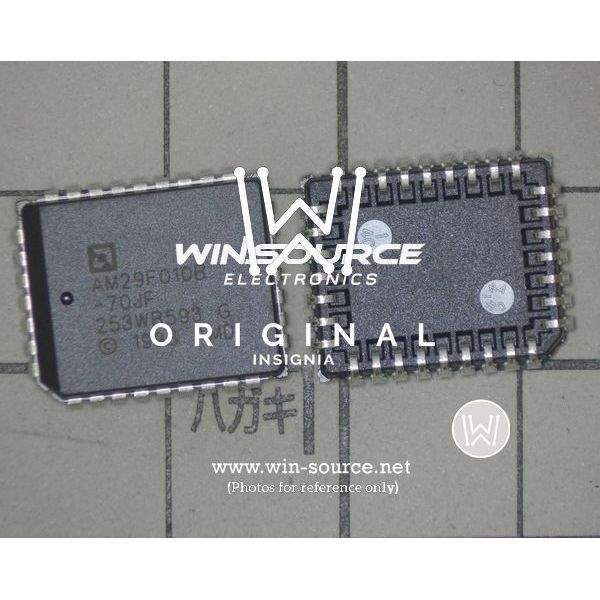

AM29F010B-70JF

Part No AM29F010B-70JF
Manufacturer Amd
Catalog HOT - SALES and EOL Components (0 - A)
Description 1 Megabit (128 K x 8-bit) CMOS 5. Volt-only, Uniform Sector Flash Memory
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amd
Supply Current 3(mA)
Address Bus 17(b)
Interface Type Parallel
Number of Words 128K
Operating Temperature (Min) -4C
Programmable Yes
Mounting Surface Mount
Access Time (Max) 7(ns)
Program/Erase Volt (Typ) 4.5 to 5.5(V)
Density 148576(Bit)
Operating Temp Range -4C to 85C
Rad Hardened No
Word Size 8(b)
Operating Supply Voltage (Typ) 5(V)
Operating Supply Voltage (Min) 4.5(V)
Operating Supply Voltage (Max) 5.5(V)
Package Type PLCC
Operating Temperature (Max) 85C
Sync/Async Asynchronous
Operating Temperature Classification Industrial
Pin Count 32
Boot Type Not Required
Cell Type NOR
Win Source Part Number 088175-AM29F010B-70JF
Family Name Am29F010B
Introduction Date July 26, 1996
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AM29F010B-70JF CAD Model

Description

AM29F010B-70JF from Amd is a legacy memory component commonly associated with embedded systems, industrial electronics, telecom hardware, and maintenance support for older board-level designs. It is typically relevant in applications where engineers need to sustain, repair, or replicate established architectures that depend on original device compatibility rather than redesigning around newer memory families. In the market, this part is positioned as a practical option for aftermarket sourcing, long-tail service inventory, and EOL-sensitive programs. Because it appears in a HOT - SALES and EOL Components category, it may be especially useful for organizations managing obsolescence risk, field returns, or last-time-buy planning. Lifecycle status information is currently not available, so engineering and procurement teams should verify current manufacturer support before committing to new designs. RoHS compliance information is also not available from the provided data and should be confirmed through the official datasheet, manufacturer declarations, or authorized supply-chain compliance documentation.
