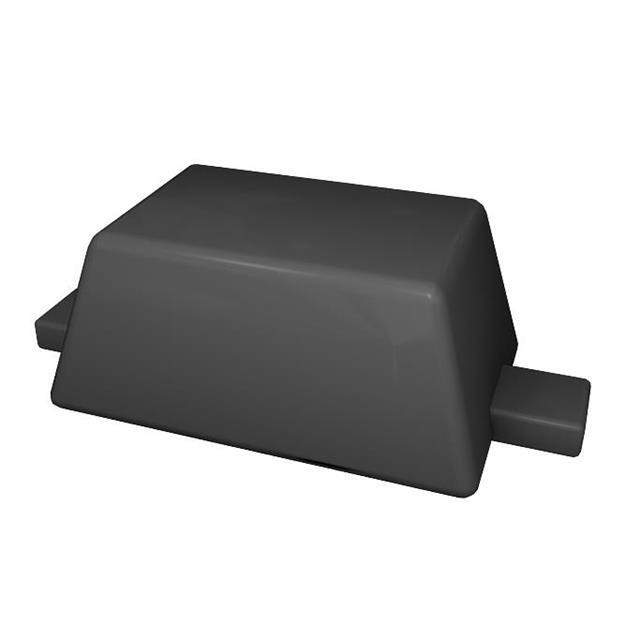

AZ5925-01H Real Image
Same model may have multiple batches, images only for reference.

AZ5925-01H

Part No AZ5925-01H
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DEVICE 1-CHANNEL 5V / Clamp Ipp Tvs Diode Surface Mount SOD-523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 5.8V
Power Line Protection No
Applications General
Temperature Range - Operating -55°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
REACH Status Vendor Undefined
Other Names 4430-AZ5925-01HTR-ND,4430-AZ5925-01HTR,4430-AZ5925-01HCT
Win Source Part Number 1145995-AZ5925-01H
Ultra Librarian 3D Model Ultra Librarian AZ5925-01H CAD Model

Description

The 1145995-AZ5925-01H is a Zener type TVS diode designed to provide protection against voltage transients in various applications.

  • Type: Zener TVS Diode
  • Reverse Standoff Voltage: 5V
  • Minimum Breakdown Voltage: 5.8V
  • Channel: Unidirectional
  • Mounting Type: SMD (SMT)
  • Package/Case: SC-79, SOD-523
  • Maximum Power Dissipation: 5000W
  • Operating Temperature: -55°C to 85°C
  • Capacitance @ Frequency: Not Specified
  • Current Peak Pulse: Not Specified
  • Manufacturer: Amazing
  • Part Numbers: 4430-AZ5925-01HTR-ND, 4430-AZ5925-01HTR, 4430-AZ5925-01HCT
