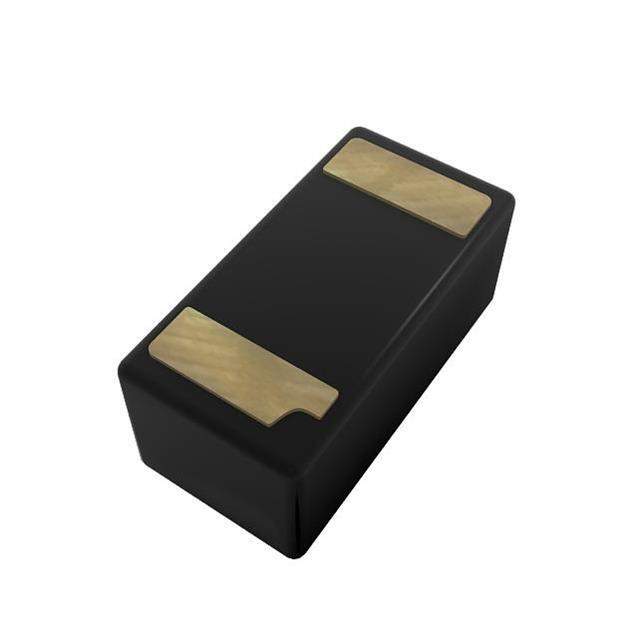

AZ5825-01F Real Image
Same model may have multiple batches, images only for reference.

AZ5825-01F

Part No AZ5825-01F
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DEVICE 1-CHANNEL 5V  /  Clamp Ipp Tvs Diode Surface Mount DFN1006P2E
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Power Line Protection No
Applications General
Temperature Range - Operating -55°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package DFN1006P2E
REACH Status Vendor Undefined
Other Names 4430-AZ5825-01FTR-ND,4430-AZ5825-01FCT,4430-AZ5825-01FTR
Win Source Part Number 1110558-AZ5825-01F
Ultra Librarian 3D Model Ultra Librarian AZ5825-01F CAD Model

Description

The Amazing AZ5825-01F is a Zener type TVS diode that comes in a 0402 (1006 Metric) package.

  • Voltage Rating (max): 5V
  • Breakdown Voltage: 6V
  • Application: General ESD Protection
  • Channel: Bidirectional
  • Peak Pulse Current: 2A
  • Packaging: Cut Tape (CT)
