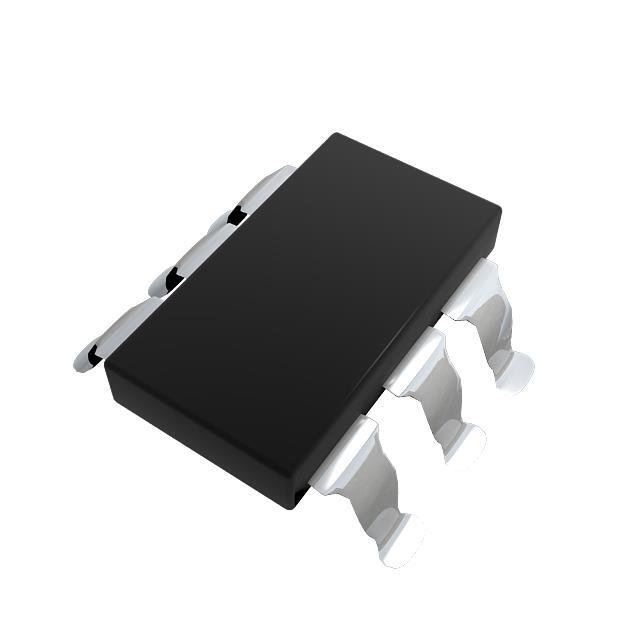

Same model may have multiple batches, images only for reference.
AZ2015-05R Amazing – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AZ2015-05R

Part No AZ2015-05R
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DIODE 5VWM SOT563
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionTransient Voltage Suppressors (TVS)TVS Diodes
Mfr Amazing
Packaging Strip
Part Status Active
Type Zener
Unidirectional Channels 5
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6.5V
Power Line Protection No
Applications General
Operating Temperature -55°C ~ 85°C (TC)
Mounting Type Surface Mount
Package / Case SOT-563, SOT-666
Supplier Device Package SOT-563
Ultra Librarian 3D Model Ultra Librarian AZ2015-05R CAD Model
