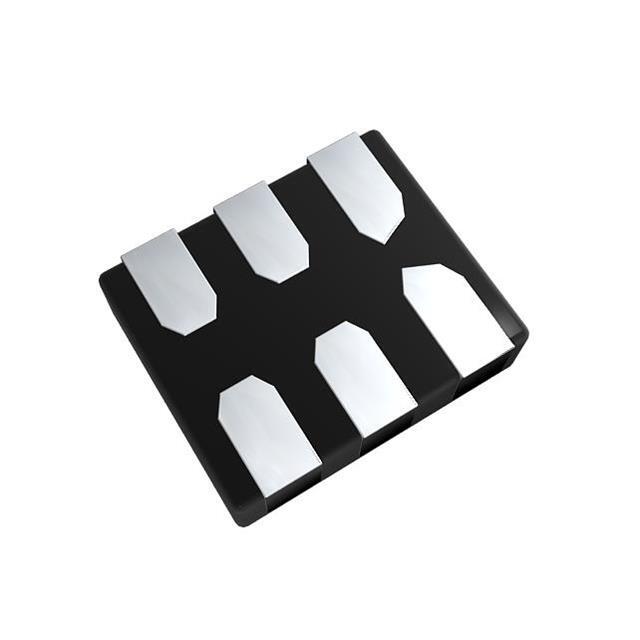

Same model may have multiple batches, images only for reference.
AZ1023-02F Amazing – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AZ1023-02F

Part No AZ1023-02F
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 13VC DFN1210P6X
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionTransient Voltage Suppressors (TVS)TVS Diodes
Mfr Amazing
Series *
Packaging Strip
Part Status Active
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4.5V
Voltage - Clamping (Max) @ Ipp 13V (Typ)
Power Line Protection No
Applications HDMI
Operating Temperature -55°C ~ 85°C (TC)
Mounting Type Surface Mount
Package / Case 6-XFDFN
Supplier Device Package DFN1210P6X
Ultra Librarian 3D Model Ultra Librarian AZ1023-02F CAD Model
