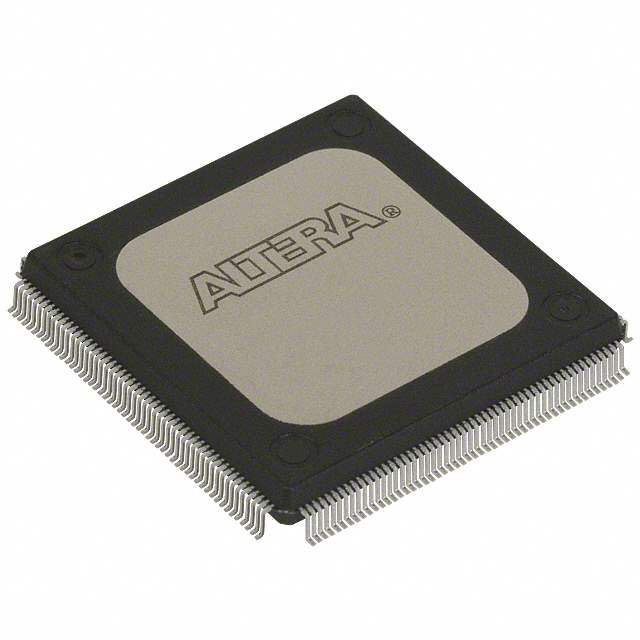

EPM7256ERC208-15 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Packaging Tray
Status Obsolete(EOL)
Programmable Type EE PLD
Delay Time tpd(1) Max 15.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 164
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 208-RQFP (28x28)
Win Source Part Number 203925-EPM7256ERC208-15
Popularity Medium
Supply and Demand Status Limited
Quantity per package 24
Ultra Librarian 3D Model Ultra Librarian EPM7256ERC208-15 CAD Model

Description

EPM7256ERC208-15: High-Performance CPLD

The EPM7256ERC208-15 is a complex programmable logic device (CPLD) known for its high speed and reliable performance. Designed to meet the demands of modern electronic applications, it provides flexibility and enhanced processing capability.

  • Applications & Projects:
    • Embedded systems
    • Communication systems
    • Data processing units
    • Digital signal processing (DSP)
  • Features & Benefits:
    • 208-pin leaded chip carrier (LCC) for reliable connections
    • High-speed performance with 15ns maximum propagation delay
    • Low power consumption ideal for energy-efficient systems
    • Reconfigurable logic for versatile applications
  • Additional Details:
    • Compatible with standard design tools for easy integration
    • Long availability and support from major distributors
