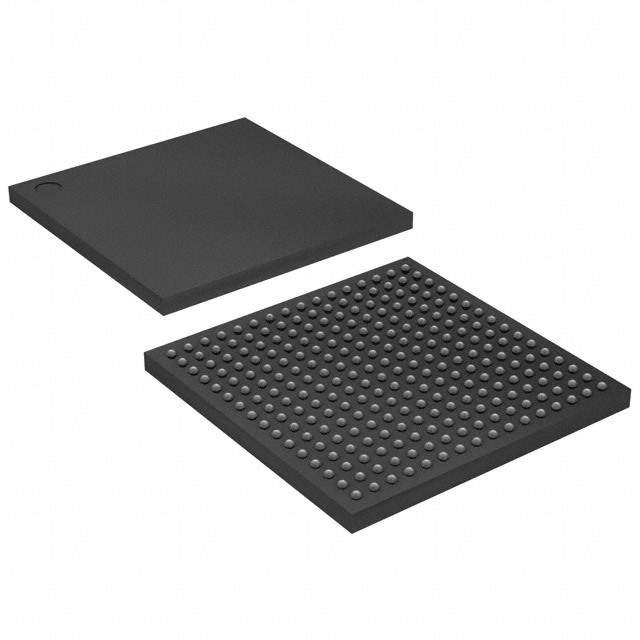

The EPF10K50EFC256-2 is a FLEX10KE family FPGA (Field Programmable Gate Array) manufactured by Altera, now part of Intel. The FLEX10KE family is known for its embedded memory capabilities and is designed for a wide range of applications requiring configurable logic and on-chip memory. The 'E' signifies enhanced features, 'FC' indicates a Fine-pitch Quad Flatpack (FQFP) package, '256' is the pin count, and '-2' denotes the speed grade (faster).
Applications:
- Data storage and retrieval systems
- Networking equipment
- Digital signal processing (DSP) applications
- Embedded controllers
- Industrial control systems
Features:
- 50,000 typical gates.
- Embedded memory (EAB – Embedded Array Block).
- Fast logic performance.
- Flexible routing architecture.
- On-chip clock management.
- Supports various I/O standards.
Benefits:
- Provides a high degree of flexibility for implementing custom logic and memory functions.
- Enables efficient data storage and retrieval within the FPGA.
- Offers high-speed processing capabilities for demanding applications.
- Reduces external component count and simplifies system design.
Additional Details:
The EPF10K50EFC256-2's FQFP package allows for surface mount assembly. Programming is typically done via JTAG or other standard FPGA configuration interfaces, often using Altera's (Intel's) Quartus II software. The embedded memory blocks (EABs) can be configured as RAM, ROM, or FIFO memory. Key specifications to consider are the number of logic elements, EAB size, I/O pin count, and maximum operating frequency. Designers should consult the device datasheet for detailed electrical characteristics, timing diagrams, and thermal management guidelines. This FPGA offers a balance of logic density, memory capacity, and performance suitable for a variety of embedded systems.
