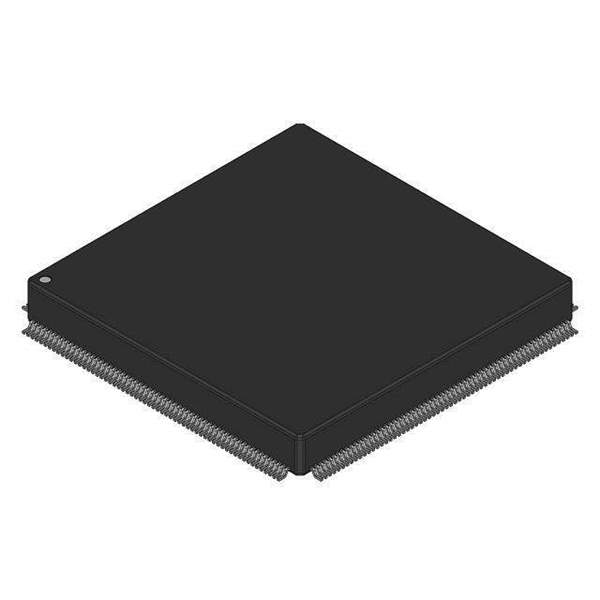

EPF10K100EQC240-1X Real Image
Same model may have multiple batches, images only for reference.

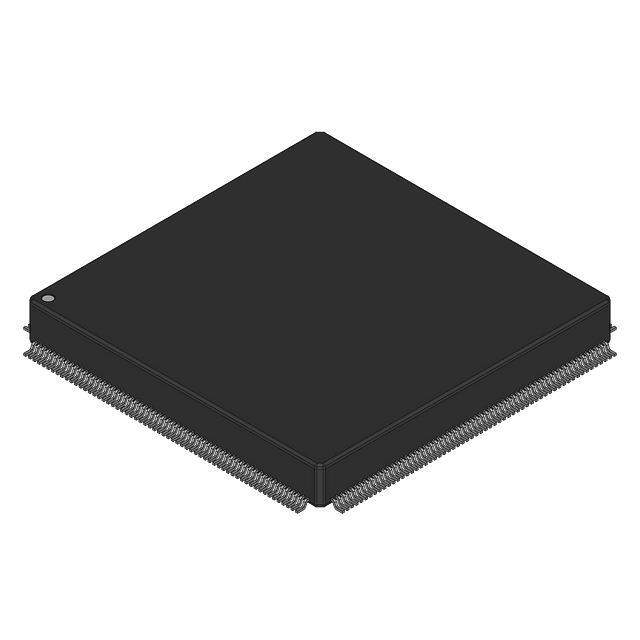

EPF10K100EQC240-1X

Part No EPF10K100EQC240-1X
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 189 I/O 240QFP / FPGA FLEX 10KE Family 100K Gates 4992 Cells 333.33MHz 0.22um Technology 2.5V 240-Pin PQFP
Datasheet
EPF10K100EQC240-1X Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series FLEX-10KE
Part Status Obsolete(EOL)
Number of LABs/CLBs 624
Number of Logic Elements/Cells 4992
Total RAM Bits 49152
Number of I/O 189
Number of Gates 257000
Operating Supply Voltage 2.375 V ~ 2.625 V
Mounting SMD
Operating Temperature Range 0°C ~ 70°C (TA)
Package 240-BQFP
Manufacturer Package 240-PQFP (32x32)
Win Source Part Number 774013-EPF10K100EQC240-1X
Popularity Medium
Supply and Demand Status Limited
Family Name EPF10K100E
Introduction Date November 02, 1998
ECCN 3A991
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPF10K100EQC240-1X CAD Model

Description

The Altera FLEX-10KE EPF10K100EQC240-1X from Altera is an integrated circuit that has 189 I/Os and 624 LABs/CLBs.

  • I/O: 189
  • LABs/CLBs: 624
  • Package / Case: 240-BQFP
  • Operating Temperature: 0°C to 70°C
  • Operating Supply Voltage: 2.375V to 2.625V
  • Logic Elements/Cells: 4992
  • RAM: 49152
  • Gates: 257000
  • Family: EPF10K100E
  • Manufacturer Package: 240-PQFP (32x32)
  • Introduction Date: November 02, 1998
  • ECCN: 3A991
  • EOL Date: Obsolete/End of Life
  • Supply and Demand Status: Limited
