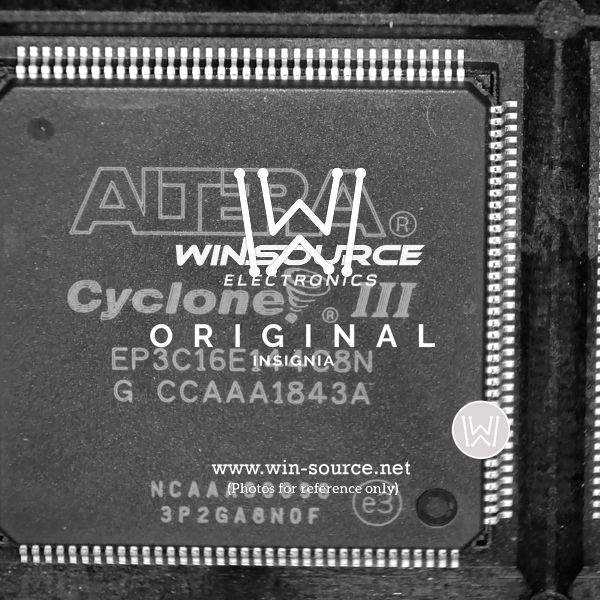

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Status Active
Number of LABs/CLBs 963
Number of Logic Elements/Cells 15408
Total RAM Bits 516096
Number of I/O 84
Supply Voltage - Operating 1.15 V to 1.25 V
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 85°C (TJ)
Case / Package 144-EQFP (20x20)
Win Source Part Number 084927-EP3C16E144C8N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name EP3C16
Introduction Date March 01, 2007
ECCN EAR99
Country of Origin Republic of Korea, Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EP3C16E144C8N CAD Model

Description

Device Overview

The EP3C16E144C8N belongs to the Cyclone III series, engineered for applications requiring optimal balance between power, performance, and cost. It’s highly suitable for a multitude of low-power designs.

Features and Benefits

  • Energy-efficient processing capabilities.
  • Rich set of features within compact footprint.
  • Broad connectivity support through versatile I/O.
  • Cost-effective development for embedded designs.

Applications

  • Portable medical devices
  • Consumer electronics
  • Smart meters
  • Automated lighting controls

Additional Details

This device offers 16,000 logic elements with robust digital signal processing features, suitable for high-speed data handling tasks while maintaining a low power profile.
