Same model may have multiple batches, images only for reference.

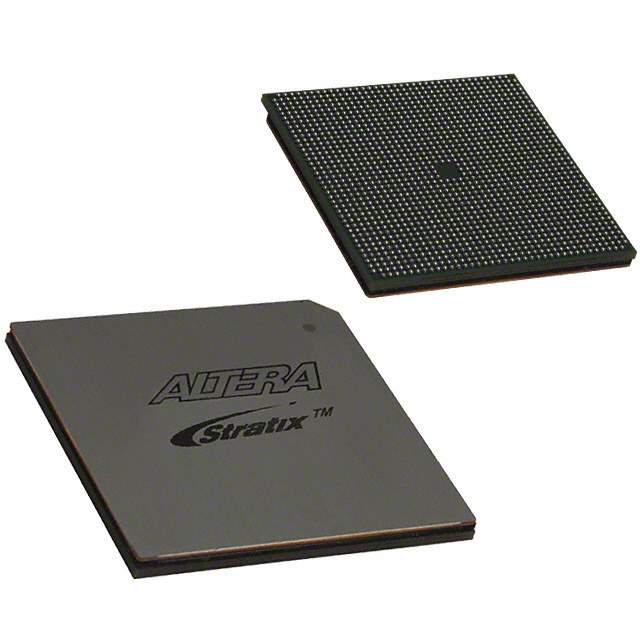

EP2SGX90FF1508C4N Real Image
Same model may have multiple batches, images only for reference.

EP2SGX90FF1508C4N

Part No EP2SGX90FF1508C4N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 650 I/O 1508FBGA / FPGA Stratix® II GX Family 90960 Cells 732.1MHz 90nm Technology 1.2V 1508-Pin FC-FBGA
Datasheet
EP2SGX90FF1508C4N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix II GX
Number of LABs/CLBs 4548
Number of Logic Elements/Cells 90960
Total RAM Bits 4520448
Number of I/O 650
Operating Supply Voltage 1.15 V ~ 1.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 1508-BBGA, FCBGA
Manufacturer Package 1508-FBGA (30x30)
Win Source Part Number 773935-EP2SGX90FF1508C4N
Popularity Medium
Supply and Demand Status Limited
Family Name EP2SGX90F
Introduction Date October 01, 2005
ECCN 3A991
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EP2SGX90FF1508C4N CAD Model

Description

The Altera EP2SGX90FF1508C4N is a high-performance integrated circuit that belongs to the Stratix II GX series.

  • I/O Pins: 650
  • LABs/CLBs: 4548
  • Logic Elements/Cells: 90960
  • Total RAM: 4520448 bits
  • Supply Voltage: 1.15 V to 1.25 V
  • Temperature: 0°C to 85°C
  • EOL Date: 2026
  • Applications: Servers, routers, and switches
