EC11E09204A4 ALPS Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

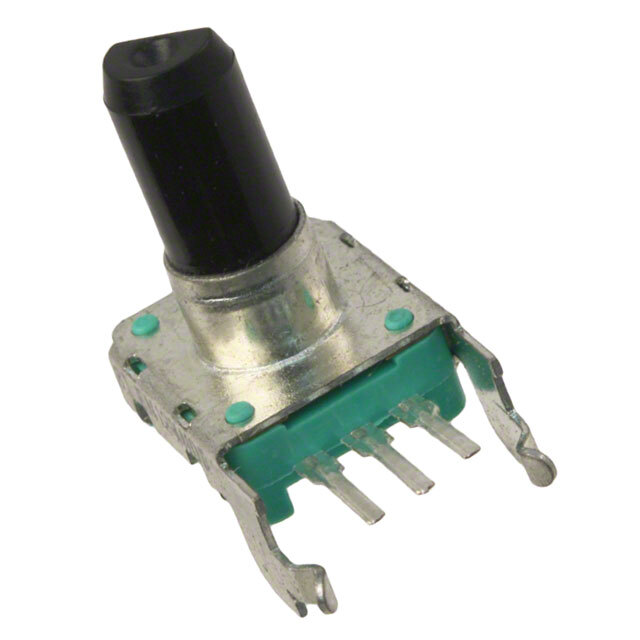

EC11E09204A4

Part No EC11E09204A4
Manufacturer ALPS Electric
Catalog Encoders
Description ENCODER INCREM QUAD VERT PC PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Encoder Type Incremental
Output Type Quadrature (Incremental)
Pulses per Revolution 9
Voltage - Supply 5V
Actuator Type 4.5mm Dia Flatted End
Detent Yes
Built in Switch No
Mounting Type PCB, Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 15K
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1548022-EC11E09204A4
Ultra Librarian 3D Model Ultra Librarian EC11E09204A4 CAD Model
