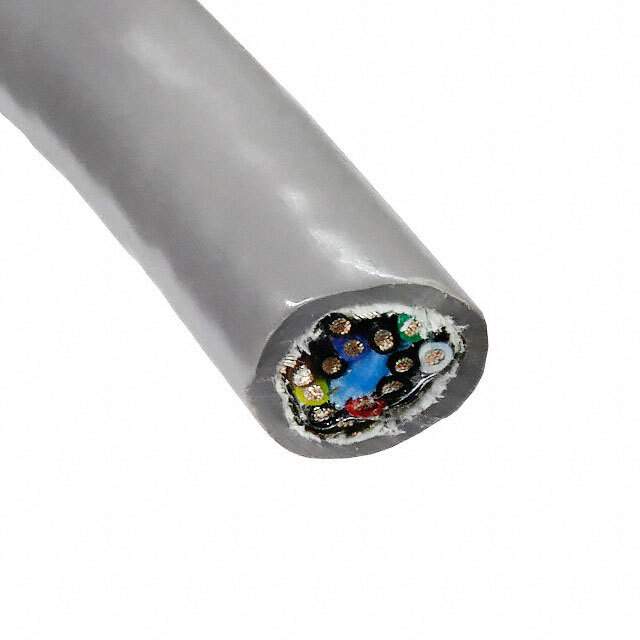

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Pair
Number of Conductors 12 (6 Pair Twisted)
Wire Gauge 24 AWG
Conductor Strand 7/32
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.464" (11.79mm)
Shield Type Foil, Braid
Length 1000.0' (304.8m)
Jacket Color Slate
Ratings UL Style 2493
Features Drain Wire
Voltage 300 V
Temperature Range - Operating -20°C ~ 75°C
Jacket (Insulation) Thickness 0.0480" (1.219mm)
Conductor Insulation Foam Polypropylene (FPP)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 65%
Base Product Number 6320
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 6320 SL001-ND,6320SL001
Standard Package 1
Win Source Part Number 1039630-6320 SL001
Ultra Librarian 3D Model Ultra Librarian 6320 SL001 CAD Model

Description

The Alpha Wire 1039630-6320 SL001 is a multi-pair cable that has 12 conductors (6 pair twisted).

  • Product Name: Alpha Wire 1039630-6320 SL001
  • Type: Multi-Pair Cable
  • Number of Conductors: 12 (6 pair twisted)
  • Wire Gauge: 24 AWG
  • Voltage Rating: 300 V
  • Length: 1000.0' (304.8m)
  • Shield Material: Aluminum; Copper, Tinned
  • Conductor Strand: 7/32
  • Conductor Material: Copper, Tinned
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Shield Type: Foil, Braid
  • Jacket Color: Slate
  • Conductor Insulation: Foam Polypropylene (FPP)
  • Jacket (Insulation) Thickness: 0.0480" (1.219mm)
  • Shield Coverage: 100%, 65%
  • Cable Rating: UL Style 2493
  • Operating Temperature Range: -20°C ~ 75°C
  • Alternative Parts (Cross-Reference): 6321 SL005, 6321 SL002, 6321 SL0016320-SL001, 6320SL001
