2842/19 RD005
Same model may have multiple batches, images only for reference.

2842/19 RD005

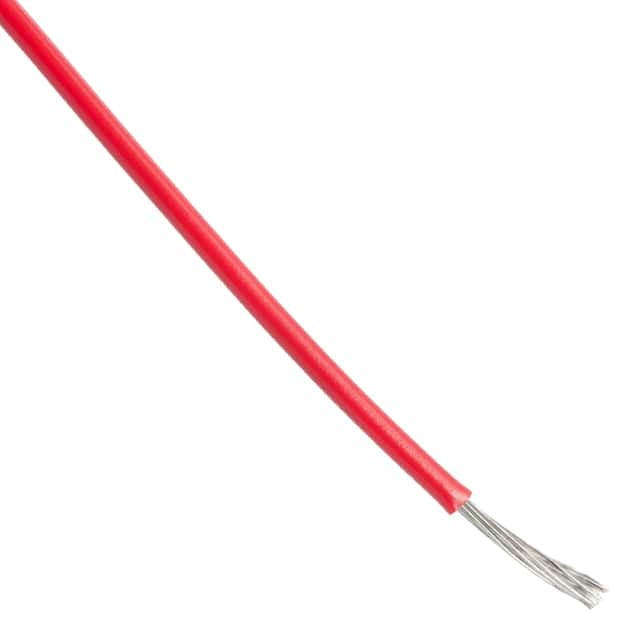

Part No 2842/19 RD005
Manufacturer Alpha Wire
Catalog Single Conductor Cables (Hook - UpWire)
Description HOOK-UP STRND 28AWG RED 100' / 28 AWG Hook-Up Wire 19/40 Red 250V 100.0' (30.5m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Single Conductor Cables (Hook-Up Wire)
Mfr Alpha Wire
Series MIL-W-16878/6 Type ET
Package Spool
Product Status Active
Cable Type Hook-Up
Wire Gauge 28 AWG
Conductor Strand 19/40
Conductor Material Copper, Silver Coated
Jacket (Insulation) Material Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Diameter 0.027" (0.69mm)
Jacket (Insulation) Thickness 0.006" (0.15mm)
Length 100.0' (30.5m)
Voltage 250V
Temperature Range - Operating -60°C ~ 200°C
Jacket Color Red
Base Product Number 2842/19
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 906152-2842/19 RD005
Ultra Librarian 3D Model Ultra Librarian 2842/19 RD005 CAD Model

Description

The 906152-2842/19 RD005 is a single conductor cable designed for hook-up wire applications from Alpha Wire.

  • Series: MIL-W-16878/6 Type ET
  • Wire Gauge: 28 AWG
  • Length: 100.0' (30.5m)
  • Conductor Material: Copper, Silver Coated
  • Insulation Material: Polytetrafluoroethylene (PTFE)
  • Jacket Color: Red
  • Voltage Rating: 250V
  • Temperature Range: -60°C to 200°C
  • Applications: Aerospace, Automotive, and Telecommunications
