Same model may have multiple batches, images only for reference.

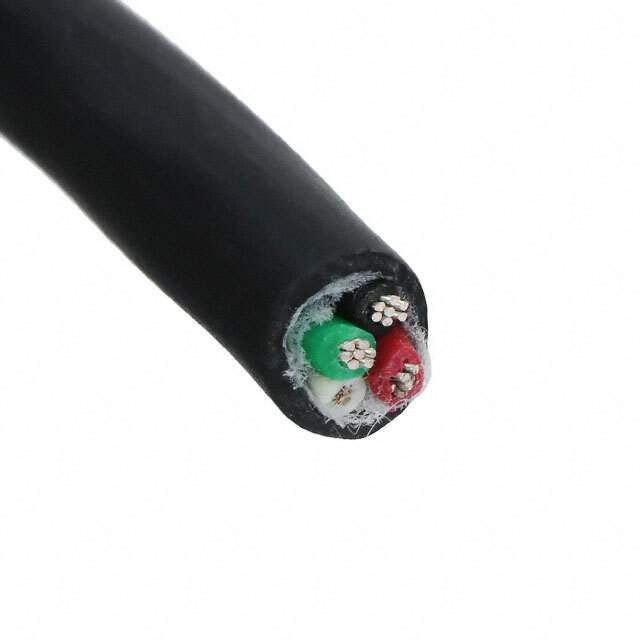

25054 BK005 Real Image
Same model may have multiple batches, images only for reference.

25054 BK005

Part No 25054 BK005
Manufacturer Alpha Wire
Catalog Multiple Conductor Cables
Description CABLE 4COND 20AWG BLACK 100'  /  4 Conductor Multi-Conductor Cable Black 20 AWG 100.0' (30.5m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Series Xtra-Guard® 2
Package Spool
Cable Type Multi-Conductor
Number of Conductors 4
Wire Gauge 20 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Jacket (Insulation) Diameter 0.238" (6.05mm)
Length 100.0' (30.5m)
Jacket Color Black
Ratings ISO 10993, UL Style 20668
Features Biological Compatibility, Rip Cord
Voltage 300 V
Temperature Range - Operating -30°C ~ 90°C
Jacket (Insulation) Thickness 0.0320" (0.813mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 25054
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 25054 BK005-ND,25054BK005
Standard Package 1
Win Source Part Number 1200735-25054 BK005
Ultra Librarian 3D Model Ultra Librarian 25054 BK005 CAD Model

Description

The Xtra-Guard 2 series multi-conductor cable from Alpha Wire is a polyurethane (PU) insulated cable with a wire gauge of 20 AWG and a length of 100.0' (30.5m).

  • Series: Xtra-Guard 2
  • Insulation: Polyurethane (PU)
  • Wire Gauge: 20 AWG
  • Length: 100.0' (30.5m)
  • Voltage Rating: 300 V
  • Conductors: 4
  • Packaging: Spool
  • Jacket Color: Black
  • Temperature Range: -30°C ~ 90°C
  • Ratings: ISO 10993 and UL Style 20668
