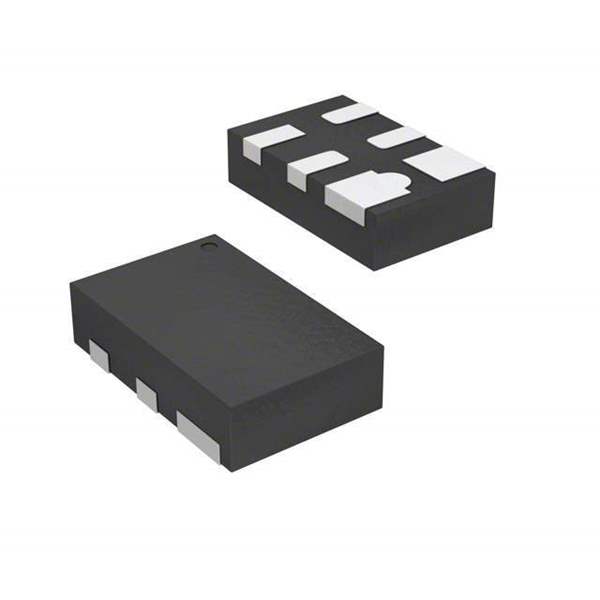

AOZ8802ADI Alpha & Omega Semiconductor Inc. AOZ8802ADI label picture
Same model may have multiple batches, images only for reference.

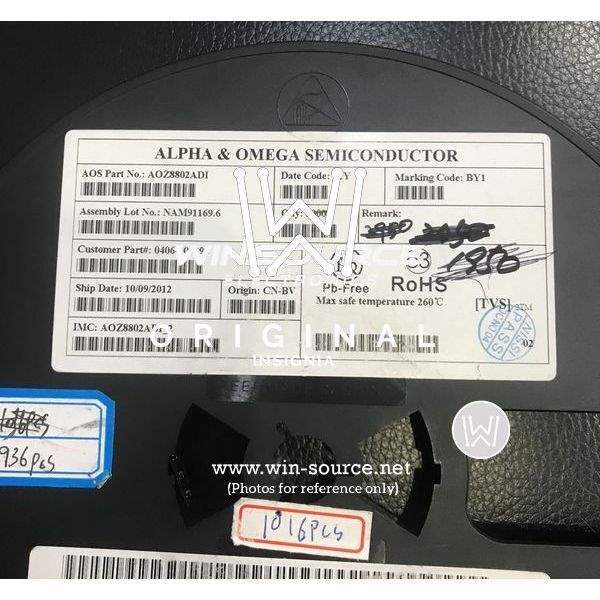

AOZ8802ADI Alpha & Omega Semiconductor Inc. AOZ8802ADI label picture
AOZ8802ADI Alpha & Omega Semiconductor Inc. AOZ8802ADI label picture
Same model may have multiple batches, images only for reference.

AOZ8802ADI

Part No AOZ8802ADI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Uni-Dir/Bi-Dir 5V 3-Pin SC-89 / TVS DIODE 5VWM 16.5VC 6DFN
Datasheet
AOZ8802ADI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 16.5V
Peak Pulse Current(Ippm) 12A (100ns)
Power Line Protection Yes
Applications Ethernet, HDMI
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN (1.6x1)
Win Source Part Number 078271-AOZ8802ADI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AOZ8205KI
Introduction Date September 05, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOZ8802ADI CAD Model

Description

AOZ8802ADI - Efficient Circuit Protection in a Compact Package

Designed with efficiency in mind, the AOZ8802ADI excels in providing comprehensive protection for sensitive electronic circuits. Its capabilities in managing voltage transients make it a vital component in modern electronic applications.

  • Applications
    • Handheld Electronics
    • Industrial Control Systems
    • Home Appliances
  • Features and Benefits
    • Compact and Low Profile: Supports streamlined design in portable devices.
    • Fast Response Time: Offers quick protection against electrical disturbances.
    • Enhanced Durability: Ensures long-term reliability in various applications.

Perfect for developers focusing on minimizing footprint without compromising on protection features. The AOZ8802ADI is a go-to solution for advanced circuit protection needs.
