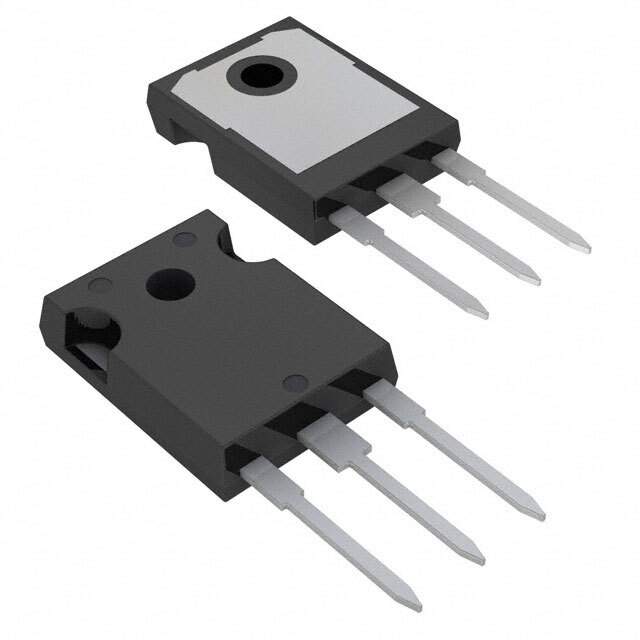

The Alpha & Omega Semiconductor AOK15B60D is a 600V, 15A Field Stop Trench IGBT (Insulated Gate Bipolar Transistor). This IGBT is designed for high efficiency and robust switching performance. It incorporates advanced trench technology to reduce conduction losses and enhance switching characteristics. The AOK15B60D is suited for various power electronics applications requiring reliable and efficient power switching.

Applications:

• Induction Heating Systems: Used in induction heating equipment for efficient power control and high-frequency switching.
• Power Factor Correction (PFC) Circuits: Employed in PFC circuits to improve power quality and reduce harmonic distortion.
• Uninterruptible Power Supplies (UPS): Incorporated in UPS systems to provide reliable power backup and efficient power conversion.
• Welding Machines: Utilized in welding machines for controlling current flow and providing stable arc performance.
• Motor Drives: Used in motor drives to control the speed and torque of electric motors efficiently.

Features:

• 600V Blocking Voltage: Offers a high blocking voltage for reliable operation in high voltage applications.
• 15A Rated Current: Capable of handling a continuous current of 15A.
• Field Stop Trench Technology: Utilizes advanced trench technology to minimize conduction losses and improve switching performance.
• Low VCE(sat): Features a low collector-emitter saturation voltage for reduced power dissipation.
• Fast Switching Speed: Provides fast switching speeds for efficient operation in high-frequency applications.
• Positive Temperature Coefficient: Offers a positive temperature coefficient for easy paralleling and improved thermal stability.

Benefits:

• High Efficiency: Provides high efficiency due to its low conduction and switching losses.
• Improved Thermal Performance: Enhances thermal performance, enabling operation at higher temperatures.
• Reliable Operation: Ensures reliable operation in demanding applications.
• Simplified Design: Simplifies the design process with its robust performance and easy paralleling capabilities.
• Reduced Power Dissipation: Minimizes power dissipation, leading to lower operating costs and improved system reliability.
• Enhanced System Performance: Improves overall system performance in terms of efficiency and reliability.

Additional Details:

The AOK15B60D is typically packaged in a TO-252 package, which provides good thermal dissipation and is suitable for surface mount applications. It is designed to operate over a wide temperature range. Proper gate drive circuitry is crucial to ensure optimal switching performance. The device includes an integrated gate resistor for improved noise immunity. Furthermore, it is RoHS compliant and halogen-free. It offers robust short-circuit withstand capability. Gate threshold voltage is designed for easy gate drive.

In summary, the Alpha & Omega Semiconductor AOK15B60D is a high-performance IGBT that delivers excellent efficiency, reliability, and thermal performance, making it suitable for a variety of power electronics applications.
