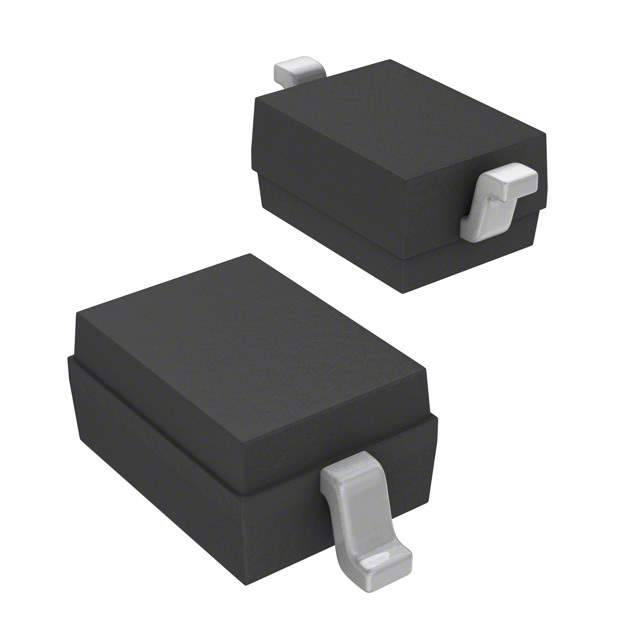

The SMV1236-011 is a silicon hyperabrupt junction tuning varactor diode from Alpha Industries (now Skyworks Solutions). This diode is specifically designed for voltage-controlled oscillators (VCOs), tunable filters, and other circuits requiring precise and linear voltage-to-capacitance tuning. It offers a high tuning ratio and low series resistance, making it ideal for frequency control applications.

Applications:

• Voltage-Controlled Oscillators (VCOs): Used for frequency tuning in VCOs for synthesizers and signal generators.
• Tunable Filters: Employed in tunable filters for selecting specific frequencies in communication systems.
• Phase-Locked Loops (PLLs): Used in PLL circuits for frequency synchronization and control.
• Frequency Synthesizers: Integrated into frequency synthesizers for generating precise frequencies.
• Tunable Antennas: Used for impedance matching and frequency tuning in tunable antennas.

Features:

• High Tuning Ratio: Provides a wide capacitance variation with applied voltage.
• Low Series Resistance: Minimizes insertion loss and improves circuit performance.
• Hyperabrupt Junction: Offers a highly linear voltage-to-capacitance characteristic.
• High Q-Factor: Ensures low loss and high efficiency in tuned circuits.
• Small Package: Available in a small surface-mount package for compact designs.

Benefits:

• Precise Frequency Control: High tuning ratio and linear characteristics enable accurate frequency control.
• Improved Circuit Performance: Low series resistance minimizes insertion loss and enhances overall circuit performance.
• Compact Design: Small package size allows for integration in space-constrained applications.
• Enhanced Stability: High Q-factor ensures stable and reliable operation.

Technical Specifications:

The SMV1236-011 typically exhibits a capacitance range from a few picofarads to tens of picofarads, depending on the applied reverse voltage. The reverse voltage rating is typically in the range of 12 to 30 volts. The Q-factor is typically high, ensuring low loss and efficient tuning. The exact specifications will vary depending on the specific manufacturing lot and should be verified with the manufacturer's datasheet. These varactors are designed for use in applications up to several GHz.
