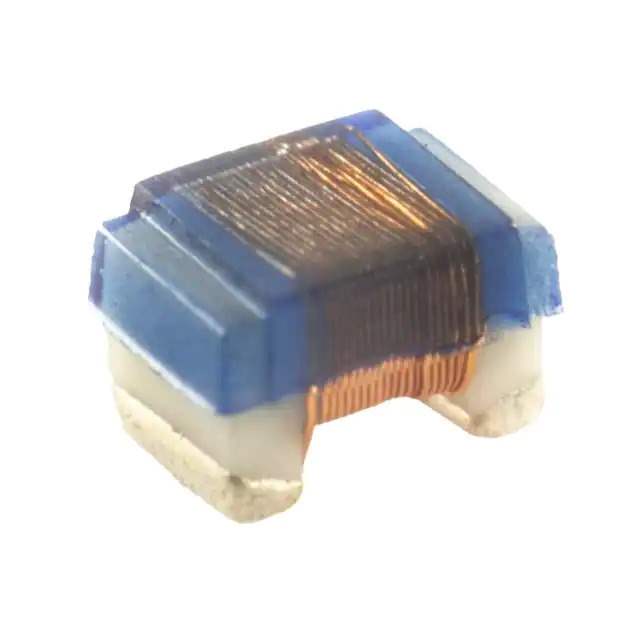

Same model may have multiple batches, images only for reference.

CC05-33NJ-RC

Get a Quote

Part No	CC05-33NJ-RC
Manufacturer	Allied Components International
Catalog	Fixed Inductors
Description	33nH +/-5% Ceramic Core Chip
Datasheet	CC05-33NJ-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Allied Components International
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	33 nH
Tolerance	±5%
Current - Saturation (Isat)	500mA
Shielding	Unshielded
DC Resistance (DCR)	270mOhm Max
Q @ Freq	60 @ 500MHz
Frequency - Self Resonant	2.05GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max)	0.060" (1.52mm)
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
HTSUS	8504.50.4000
Win Source Part Number	709869-CC05-33NJ-RC
Ultra Librarian 3D Model	Ultra Librarian CC05-33NJ-RC CAD Model

Alternative Products

Description

The 709869-CC05-33NJ-RC is a wirewound fixed inductor used in various electronic applications, manufactured by Allied Components International.

Size: 0.090" L x 0.068" W (2.29mm x 1.73mm)
Inductance: 33 nH
Shielding: Unshielded
Package: Tape & Reel
Tolerance: ±5%
Maximum Seated Height: 0.060" (1.52mm)
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mountable
DC Resistance (DCR): 270mOhm Max
Material: Ceramic
Q Value: 60 @ 500MHz
Self-Resonant Frequency: 2.05GHz
Product Status: Active
Standard Package: 1 piece
