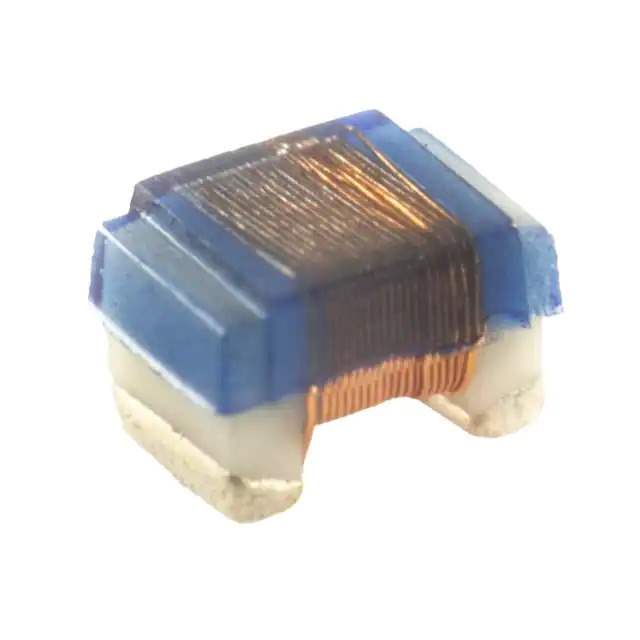

CC05-100NJ-RC

Get a Quote

Part No	CC05-100NJ-RC
Manufacturer	Allied Components International
Catalog	Fixed Inductors
Description	100nH +/-5% Ceramic Core Chip
Datasheet	CC05-100NJ-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Allied Components International
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	100 nH
Tolerance	±5%
Current - Saturation (Isat)	400mA
Shielding	Unshielded
DC Resistance (DCR)	460mOhm Max
Q @ Freq	65 @ 500MHz
Frequency - Self Resonant	1.2GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	150 MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max)	0.060" (1.52mm)
Standard Package	2 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
HTSUS	8504.50.4000
Win Source Part Number	713911-CC05-100NJ-RC
Ultra Librarian 3D Model	Ultra Librarian CC05-100NJ-RC CAD Model

Alternative Products

Description

The 713911-CC05-100NJ-RC is a fixed inductor designed for various electronic applications, manufactured by Allied Components International.

Type: Wirewound
Size: 0.090" L x 0.068" W
Inductance: 100nH
Tolerance: ±5%
Frequency: 500MHz
Q Value: 65 @ 500MHz
Shielding: Unshielded
Package: Tape & Reel
Mounting Type: Surface Mount
Maximum Seated Height: 0.060"
Temperature Range: -40°C to 125°C
Product Status: Active
