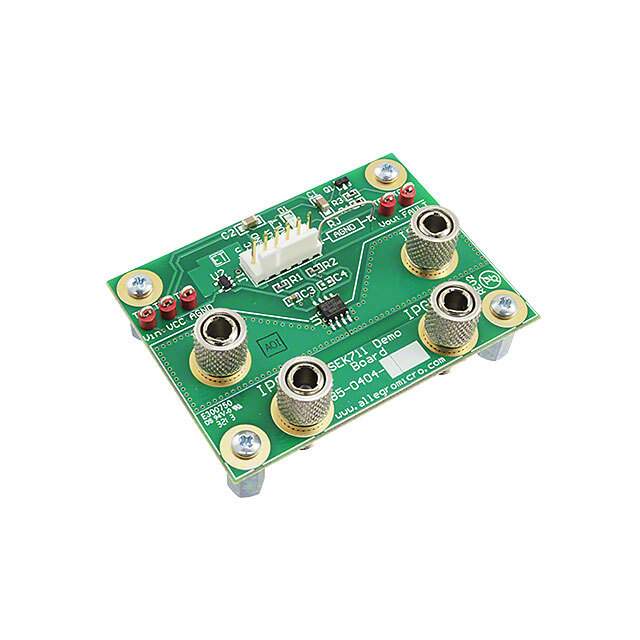

ASEK711KLC-25AB-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK711KLC-25AB-T-DK

Part No ASEK711KLC-25AB-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description BOARD DEMO 711KLC-25AB SENSOR / ACS711 - Current Sensor Sensor Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Box
Sensor Type Current Sensor
Sensing Range 25A
Sensitivity 55mV/A
Voltage - Supply 3V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part ACS711
Base Product Number ASEK71
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1347091-ASEK711KLC-25AB-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK711KLC-25AB-T-DK CAD Model

Description

The ASEK711KLC-25AB-T-DK is a current sensor evaluation board manufactured by Allegro MicroSystems.

  • Package: Box
  • Standard Package: 1
  • Sensing Range: 25A
  • Sensitivity: 55mV/A
  • IC/Part: ACS711
  • Voltage Supply: 3V ~ 5.5V
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Base Product Number: ASEK71
