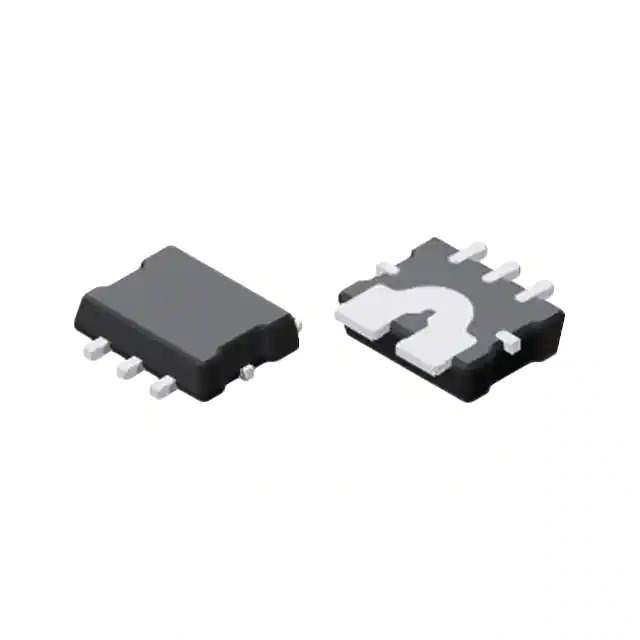

ACS781KLRTR-150B-T Real Image ACS781KLRTR-150B-T Real Image1 ACS781KLRTR-150B-T Real Image2 ACS781KLRTR-150B-T Real Image3
Same model may have multiple batches, images only for reference.
ACS781KLRTR-150B-T Real Image ACS781KLRTR-150B-T Real Image1 ACS781KLRTR-150B-T Real Image2 ACS781KLRTR-150B-T Real Image3
ACS781KLRTR-150B-T Real Image ACS781KLRTR-150B-T Real Image1 ACS781KLRTR-150B-T Real Image2 ACS781KLRTR-150B-T Real Image3
Same model may have multiple batches, images only for reference.

ACS781KLRTR-150B-T

Part No ACS781KLRTR-150B-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CUR HALL 100A 7POWERSMD / Current Sensor 100A 1 Channel Hall Effect, Differential Bidirectional 7-PowerSMD Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Allegro MicroSystems, LLC
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Differential
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 8.8mV/A
Frequency DC ~ 120kHz
Linearity ±1%
Accuracy ±0.8%
Voltage - Supply 3V ~ 3.6V
Response Time 3.6µs
Current - Supply (Max) 15mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 7-PowerSMD Module
Supplier Device Package 7-PSOF
Base Product Number ACS781
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 848158-ACS781KLRTR-150B-T
Ultra Librarian 3D Model Ultra Librarian ACS781KLRTR-150B-T CAD Model

Description

The ACS781KLRTR-150B-T is a current sensor designed for measuring AC and DC currents up to 100A.

  • Principle: Hall Effect
  • Polarization: Bidirectional
  • Output: Ratiometric Voltage
  • Sensitivity: 8.8mV/A
  • Supply Voltage: 3V to 3.6V
  • Package: 7-PowerSMD Module
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Accuracy: ±0.8%
  • Response Time: 3.6μs
  • Applications: Automotive and Industrial
