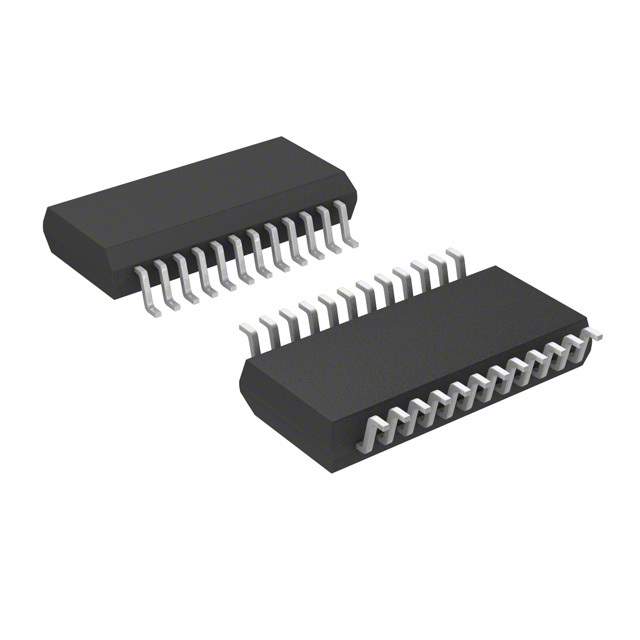

ACS709LLFTR-10BB-T Real Image
Same model may have multiple batches, images only for reference.

ACS709LLFTR-10BB-T

Part No ACS709LLFTR-10BB-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT 10A
Datasheet
ACS709LLFTR-10BB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 7 Weeks
Features Current Sensor 10A 1 Channel Hall Effect, Open Loop Bidirectional 24-SSOP (0.154", 3.90mm Width)
Manufacturer Allegro MicroSystems, LLC
Package Reel - TR
Operating Temperature Range -40°C ~ 150°C
Mounting Surface Mount
Package 24-SSOP (0.154", 3.90mm Width)
Case / Package 24-QSOP
Family Name ACS709
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 7500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 909230-ACS709LLFTR-10BB-T
Ultra Librarian 3D Model Ultra Librarian ACS709LLFTR-10BB-T CAD Model

Description

The ACS709LLFTR-10BB-T is a bidirectional 1-channel Hall Effect current sensor manufactured by Allegro MicroSystems. This sensor has a current rating of 10A and can operate within a temperature range of -40°C to 150°C.

  • Package: 24-SSOP
  • Mounting: Surface Mountable
  • Family Name: ACS709
  • Popularity: Highly popular
  • Supply and Demand Status: Balanced
  • REACH: Unaffected
  • Estimated Production Lead Time: 7 weeks
  • Quantity per Reel: 7500
