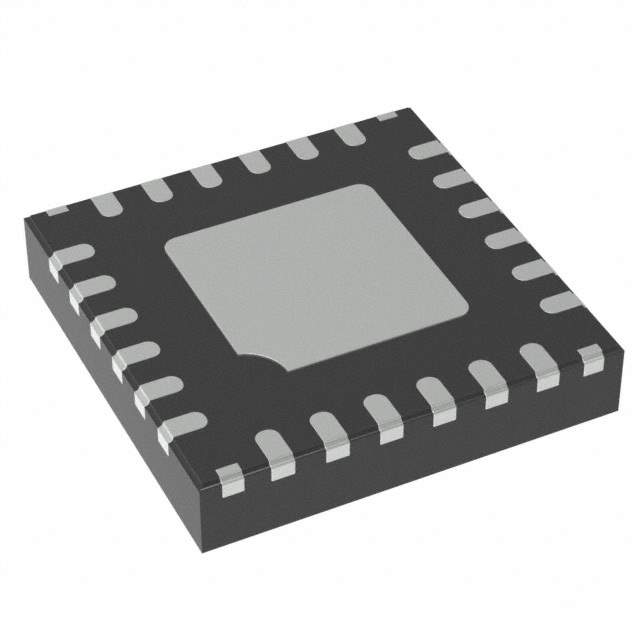

A80602KESJSR-1 Real Image
Same model may have multiple batches, images only for reference.

A80602KESJSR-1

Part No A80602KESJSR-1
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - LED Drivers
Description IC LED DRVR CTRL PWM 140MA 24QFN / LED Driver IC 6 Output DC DC Controller SEPIC, Step-Up (Boost) Analog, PWM Dimming 140mA 24-QFN (4x4)
Datasheet
A80602KESJSR-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr Allegro MicroSystems
Series Automotive, AEC-Q100
Package Tape & Reel
Type DC DC Controller
Topology SEPIC, Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 6
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 40V
Voltage - Output 4.05V ~ 4.45V
Current - Output / Channel 140mA
Frequency 200kHz ~ 2.15MHz
Dimming Analog, PWM
Applications Automotive, Backlight
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount, Wettable Flank
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Base Product Number A80602
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 620-2041-2,620-2041-1,620-2041-6
Standard Package 6,000
Win Source Part Number 974900-A80602KESJSR-1
Ultra Librarian 3D Model Ultra Librarian A80602KESJSR-1 CAD Model

Description

The A80602KESJSR-1 is a DC DC controller from Allegro MicroSystems, LLC.

  • Category: PMIC - LED drivers
  • Application: automotive applications
  • Topology: step-up (boost) and SEPIC
  • Outputs: 6
  • Output Voltage Range: 4.05 V to 4.45 V
  • Output Current: 140 mA
  • Frequency Range: 200 kHz to 2.15 MHz
  • Temperature Range: -40°C to 125°C
  • Dimming: analog and PWM
  • Mounting: 24-WFQFN exposed pad package
  • Voltage Supply Range: 4.5 V to 40 V
  • Description: It is a popular and widely used part with a balanced supply and demand status.
