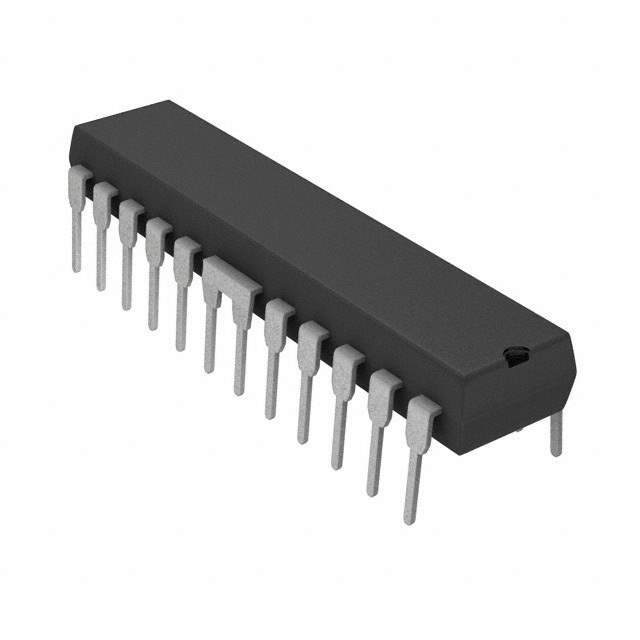

A2919SB Real Image
Same model may have multiple batches, images only for reference.

A2919SB

Part No A2919SB
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description DUAL FULL-BRIDGE PWM MOTOR DRIVER | IC MTRDRV BIPLR 4.75-5.25V 24DIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Tube
Status Obsolete
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology Bipolar
Step Resolution 1/2, 1/4
Applications General Purpose
Output Current 750mA
Supply Voltage (V) 4.75V ~ 5.25V
Load Voltage (V) 10V ~ 45V
Temperature Range - Operating -20°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 24-PowerDIP
Supplier Device Package 24-DIP
Family Part Number A2919
Manufacturer Pack Quantity 15
MSL Level 1 (Unlimited)
Win Source Part Number 1134529-A2919SB
Manufacturer Homepage www.allegromicro.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian A2919SB CAD Model

Description

The A2919SB is a fully integrated bipolar driver IC manufactured by Allegro MicroSystems.

  • GPT Description: It is designed for use in general purpose applications, and can drive up to four half bridges with a maximum output current of 750mA.
  • GPT Description: It is suitable for use with brushed DC and bipolar stepper motors, and has a step resolution of 1/2 and 1/4.
  • Operating Supply Voltage Range: 4.75V to 5.25V
  • Load Voltage Range: 10V to 45V
  • Package: 24-PowerDIP
  • Operating Temperature Range: -20°C to 150°C
