Same model may have multiple batches, images only for reference.

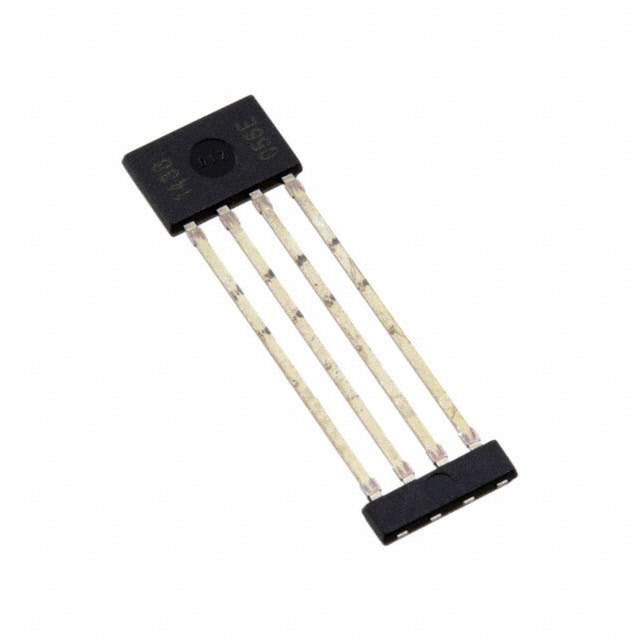

A1360LKTTN-T Real Image
Same model may have multiple batches, images only for reference.

A1360LKTTN-T

Part No A1360LKTTN-T
Manufacturer Allegro MicroSystems, LLC
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL EFFECT ANALOG 4SIP  /  Hall Effect Sensor Single Axis 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Linear, Compass (ICs)
Mfr Allegro MicroSystems
Package Tape & Reel
Product Status Obsolete
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Voltage - Supply 4.5V ~ 5.5V
Current - Supply (Max) 12mA
Current - Output (Max) 10mA
Bandwidth 50kHz
Temperature Range - Operating -40°C ~ 150°C (TA)
Features Programmable, Temperature Compensated
Supplier Device Package 4-SIP
Mounting Type Through Hole
Package / Case 4-SIP Module
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 620-1233-6,2156-A1360LKTTN-T-AMTR-ND,A1360LKTTNT,ALLALLA1360LKTTN-T,2156-A1360LKTTN-T,620-1233-1,620-1233-2
Standard Package 4,000
Win Source Part Number 1041974-A1360LKTTN-T
Ultra Librarian 3D Model Ultra Librarian A1360LKTTN-T CAD Model

Description

The A1360LKTTN-T is a programmable, temperature-compensated linear magnetic sensor manufactured by Allegro MicroSystems.

  • Bandwidth: 50kHz
  • Output Type: Analog Voltage
  • Axis: Single
  • Temperature Range: -40°C to 150°C (TA)
  • Package: 4-SIP Module
  • Mounting: Through Hole
  • Package Quantity: 4000 units
  • ECCN: EAR99
  • REACH: Unaffected
  • Suitability: Suitable for use in various applications, including magnetic field sensing, linear position sensing, and compass applications.
  • Popularity: High popularity
