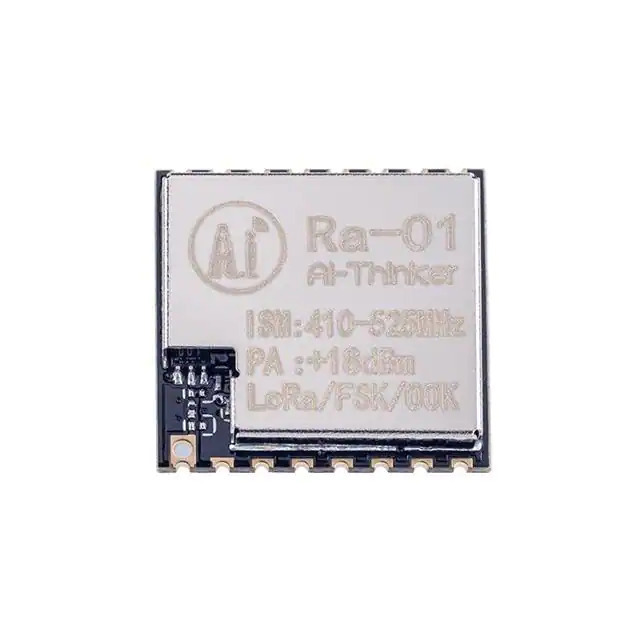

RA-01 Ai-Thinker
Same model may have multiple batches, images only for reference.

RA-01

Part No RA-01
Manufacturer Ai-Thinker
Catalog RF Transceiver Modules
Description LORA MODULE, 433MHZ, SEMTECH SX1
Datasheet
RA-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard General ISM < 1GHz
Protocol LoRa™
Modulation FSK, GFSK, GMSK, MSK, OOK
Frequency 410MHz ~ 525MHz
Data Rate 300kbps
Power - Output 18dBm
Sensitivity -141dBm
Serial Interfaces SPI
Antenna Type Antenna Not Included
Utilized IC / Part -
Memory Size -
Voltage - Supply 2.5V ~ 3.7V
Current - Receiving 12.15mA
Current - Transmitting 93mA ~ 97mA
Mounting Type Surface Mount
Temperature Range - Operating -30°C ~ 85°C
Package / Case 16-SMD Module
MSL Level 1 (Unlimited)
ECCN 5A991G
HTSUS 8517.62.0090
Win Source Part Number 1370944-RA-01
Ultra Librarian 3D Model Ultra Librarian RA-01 CAD Model

Description

The Ai-Thinker RF Transceiver Module is a high-quality electronic component designed for RF and wireless applications.

  • Product Name: RF Transceiver Module
  • Manufacturer: Ai-Thinker
  • Frequency Range: 410MHz to 525MHz
  • Voltage Supply: 2.5V to 3.7V
  • Data Rate: 300kbps
  • Modulation: FSK, GFSK, GMSK, MSK, OOK
  • Power Output: 18dBm
  • Sensitivity: -141dBm
  • Interface: SPI
  • Mounting Type: Surface Mount
