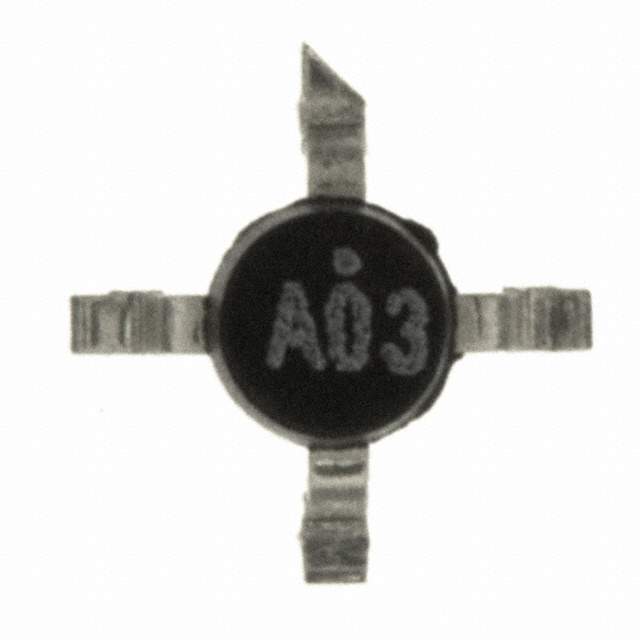

The MSA-0386-TR1 is a Silicon Bipolar MMIC Amplifier manufactured by Agilent (Hewlett-Packard). It is designed for low-noise amplifier (LNA) applications and general-purpose gain stages in various RF and microwave systems.

Applications

• Low-noise amplifiers (LNAs)
• General-purpose gain stages
• Receiver front-ends
• Oscillators
• Buffer amplifiers

Features

• High gain
• Low noise figure
• Wide bandwidth
• Unconditionally stable
• Internally matched

Benefits

• Improved receiver sensitivity
• Increased signal strength
• Reduced noise and distortion
• Stable and reliable performance
• Simplified circuit design due to internal matching

Additional Details

The MSA-0386-TR1 provides high gain and a low noise figure, making it ideal for low-noise amplifier applications where maximizing receiver sensitivity is critical. Its wide bandwidth enables its use in various frequency bands. The device is unconditionally stable, ensuring reliable performance. The internally matched design simplifies circuit design by minimizing the need for external matching components. It operates with a single positive voltage. The amplifier provides consistent performance across its operating temperature range.

The MSA-0386-TR1 is suitable for use in a broad array of communication and test equipment applications.
