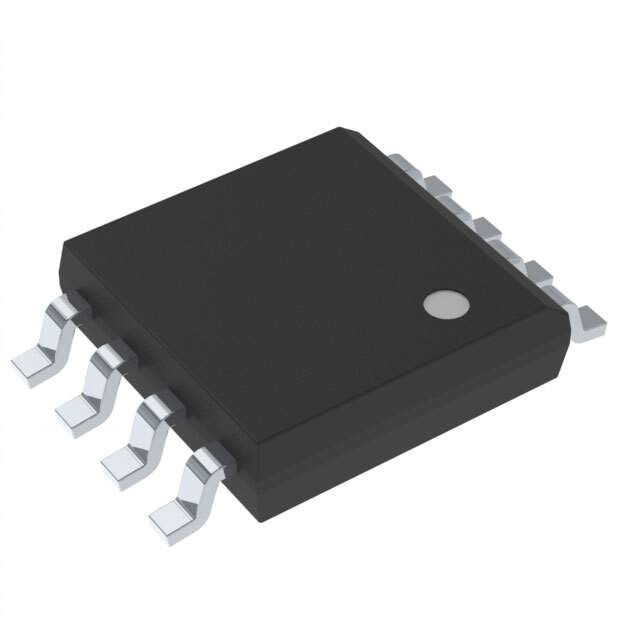

AT45DB161E-SHFHC-T Real Image
Same model may have multiple batches, images only for reference.

AT45DB161E-SHFHC-T

Part No AT45DB161E-SHFHC-T
Manufacturer Adesto Technologies
Catalog Flash
Description IC FLASH 16MBIT 85MHZ 8SOIC / NOR Flash Serial-SPI 2.5V/3.3V 16M-bit 2M x 8 7ns 8-Pin SOIC EIAJ T/R
Datasheet
AT45DB161E-SHFHC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Adesto Technologies
Packaging Reel package
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 16Mb (528 Bytes x 4096 pages)
Clock Frequency 85MHz
Write Cycle Time - Word, Page 8μs, 4ms
Memory Interface SPI
Operating Supply Voltage 2.3 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C (TC)
Mounting SMD
Package 8-SOIC (0.209", 5.30mm Width)
Manufacturer Package 8-SOIC
Win Source Part Number 769018-AT45DB161E-SHFHC-T
Popularity Medium
Supply and Demand Status Limited
Family Name AT45DB161E
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AT45DB161E-SHFHC-T CAD Model

Description

The AT45DB161E-SHFHC-T is a flash memory IC manufactured by Adesto Technologies.

  • Memory Size: 16Mb (528 Bytes x 4096 pages)
  • Operating Supply Voltage: 2.3 V ~ 3.6 V
  • Package: 8-SOIC
  • Mounting Type: SMD
  • Clock Frequency: 85MHz
  • Write Cycle Time (Word): 8μs
  • Write Cycle Time (Page): 4ms
  • Memory Interface: SPI
  • Popularity: Medium
  • Supply and Demand Status: limited
